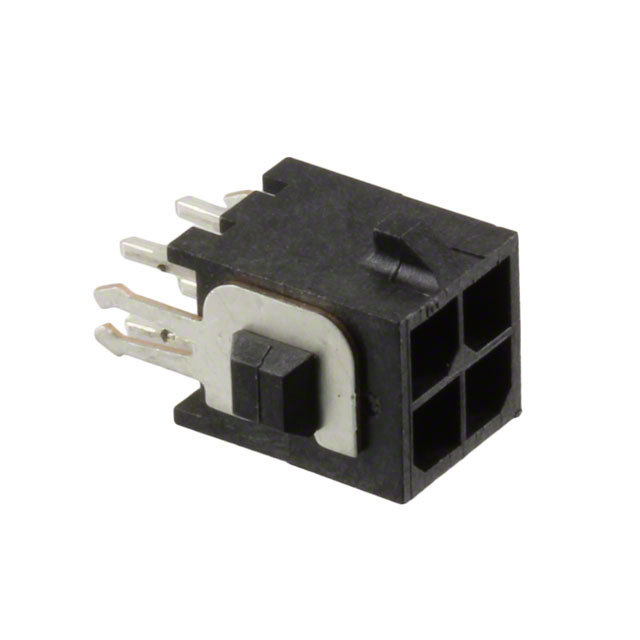

3-794680-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Factory Lead Time :

13 Weeks, 3 Days

Mounting Style :

Through Hole

Series :

MATE-N-LOK

Reference Standard :

CSA, UL

Withdrawl Force-Min :

.695 N

Board Mounting Option :

SPLIT BOARD LOCK

Contact Style :

SQ PIN-SKT

Voltage Rating :

250 V

PCB Contact Pattern :

RECTANGULAR

Terminal Length :

0.125 inch

Filter Feature :

No

Brand :

TE Connectivity / AMP

Voltage Rating Max :

250VAC

Termination Style :

Through Hole

Termination Method :

Solder

Product Category :

Pin and Socket Connectors

Subcategory :

Pin and Socket Connectors

Product :

Headers

Mating Contact Row Spacing :

0.118 inch

Housing Color :

Black

Mating Contact Pitch :

0.118 inch

Number of Rows :

2 Row

RoHS :

Details

Contact Plating :

TIN OVER NICKEL

Base/Housing Material :

Nylon

Pitch (mm) :

3(mm)

Product Length (mm) :

10(mm)

Mounting Type :

Through Hole

Body Orientation :

Straight

Pbfree Code :

yes

Body Depth :

0.364 inch

Operating Temperature Max Deg. C :

105C

Contact Material :

Brass

Mounting Option 1 :

LOCKING

Insulation Resistance :

100000000 Ω

Terminal Pitch :

2.9972 mm

Operating Temperature :

-40 to 105 °C

Dielectric Withstanding Voltage :

1500VAC V

PCB Contact Row Spacing :

2.9972 mm

Current Rating :

5 A

Accessory Type :

-

Product Height (mm) :

8.67(mm)

Polarization Key :

POLARIZED HOUSING

Type :

Power

Number of Positions :

4 Position

MIL Conformance :

No

IEC Conformance :

No

Product Type :

Pin and Socket Connectors

Housing Gender :

PLUG

Insulator Color :

Black

Contact Gender :

Pin (Male)

Flammability Rating :

UL 94 V-0

UL Flammability Code :

94V-0

Rated Current (Signal) :

5 A

Tradename :

MATE-N-LOK

Mounting :

Through Hole

Additional Feature :

MATE-N-LOK

Number of Contacts :

4(POS)

Total Number of Contacts :

4

Housing Material :

Nylon

Brand Name :

AMP

Connector System :

Wire to Board

Packaging :

Box or Tray

Body Breadth :

0.341 inch

Number Of PCB Rows :

2

Gender :

HDR

Operating Temperature Min Deg. C :

-40C

Plating Thickness :

100u inch

Manufacturer :

TE Connectivity

Product Length :

10 mm

Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Reach Compliance Code :

Compliant

Insertion Force-Max :

6.672 N

Product Depth (mm) :

9.24(mm)

Reliability :

COMMERCIAL

DIN Conformance :

No

Shell Material :

Polyamide

Mating Information :

794617-4

Body/Shell Style :

PLUG

Pitch :

3.0000 mm

Empty Shell :

No

Connector Type :

COMBINATION LINE CONNECTOR

Current Rating (Max) :

5/Contact(A)

Termination Type :

Solder

Operating Temp Range :

-40C to 105C

Number of Ports :

1(Port)

Number of Terminals :

4

Option :

GENERAL PURPOSE
