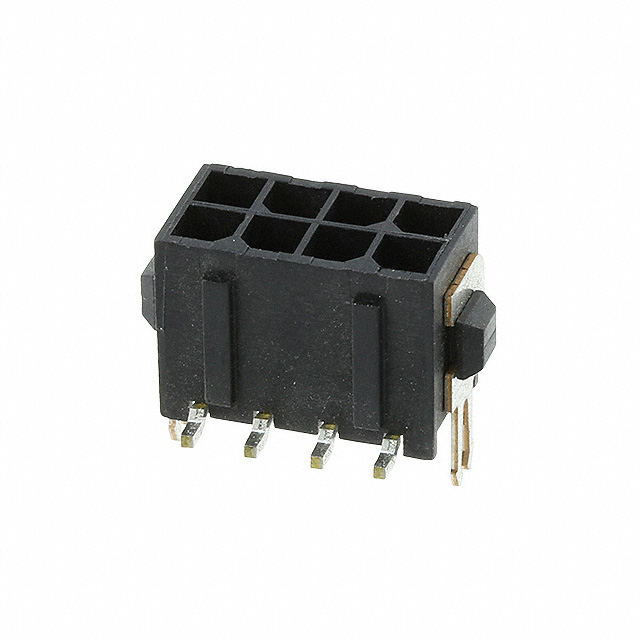

3-794633-8
Or copy the link below:
- Mfr.Part #
- 3-794633-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 8POS 3MM
- Stock
- 13,366
- In Stock ：
- 13,366
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Operating Supply Voltage :
- 250V
- Color :
- Black
- Packaging :
- Tape and Reel (TR)
- Plating Thickness :
- 2.54μm
- Contact Retention :
- Without
- Housing Material :
- Nylon
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Series :
- Micro MATE-N-LOK
- PCB Mounting Orientation :
- Vertical
- Housing Color :
- Black
- Connector Type :
- Header
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Plating :
- Tin
- Number of Power Positions :
- 8
- Max Operating Temperature :
- 221°C
- VDE Tested :
- yes
- Number of Positions :
- 8
- Voltage - Rated :
- 250V
- Flammability Rating :
- UL94 V-0
- Applications :
- GENERAL PURPOSE
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Circuit Application :
- Power
- Approval Agency :
- CSA
- Max Voltage Rating (AC) :
- 250V
- Mount :
- Surface Mount
- Number of Positions Loaded :
- All
- Number of Contacts :
- 8
- Material Flammability Rating :
- UL94 V-0
- Number of Terminations :
- 8
- Published :
- 2008
- Contact Gender :
- Male
- Pitch - Mating :
- 0.118 3.00mm
- Current Rating :
- 5A
- PCB Thickness :
- 1.57mm
- Width :
- 9.24mm
- Radiation Hardening :
- No
- Contact Current Rating :
- 5A
- Operating Temperature :
- -40°C~105°C
- Insulation Color :
- Black
- Contact Material :
- Brass
- Insulation Height :
- 0.364 9.25mm
- Number of Ports :
- 1
- Contact Shape :
- Square
- Factory Lead Time :
- 19 Weeks
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Locking Ramp
- Min Operating Temperature :
- -40°C
- Contact Finish - Mating :
- Tin
- Orientation :
- Vertical
- Mounting Type :
- Surface Mount
- Termination :
- Solder
- Sealable :
- No
- Contact Finish - Post :
- Tin
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Number of Rows :
- 2
- Length :
- 16mm
- Plating :
- Tin
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Feature :
- Board Lock, Pick and Place
- Insulation Material :
- Polyamide (PA), Nylon
- Pitch :
- 2.9972mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Datasheets
- 3-794633-8
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 8-Position Board to Cable/Wire 0.364 9.25mm Height
3-794633-8 Overview
This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Micro MATE-N-LOK Series.Use it below 221°C.A minimum temperature of -40°C must be maintained for the operation of this device.With 1 ports, it is capable of managing a wide range of tasks.There is the possibility of using the device for General Purpose.In many ways, Board Lock, Pick and Place makes it more powerful.By Surface Mount, the part is mounted.In this chip, the terminations are all 8.The operating voltage of this memory is 250V.Operating temperature is set to -40°C~105°C.
3-794633-8 Features
8 basic kinds of terminations
Micro MATE-N-LOK series
3-794633-8 Applications
There are a lot of TE Connectivity AMP Connectors
3-794633-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
