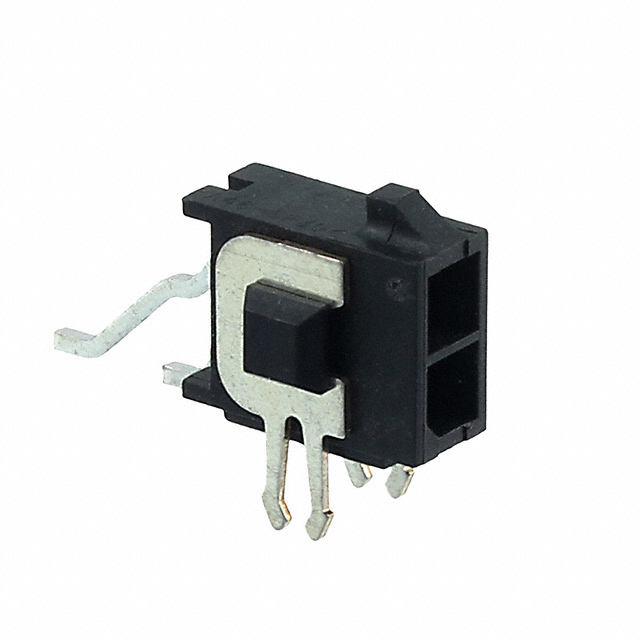

3-794624-2
Or copy the link below:
- Mfr.Part #
- 3-794624-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 2POS
- Stock
- 16,840
- In Stock ：
- 16,840
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Gender :
- Male
- Radiation Hardening :
- No
- Row Spacing - Mating :
- 0.118 (3.00mm)
- Contact Current Rating :
- 5A
- Number of Rows :
- 2
- Plating Thickness :
- 2.54μm
- Contact Retention :
- Without
- Number of Terminations :
- 2
- Mounting Type :
- Surface Mount, Right Angle
- Contact Finish - Mating :
- Tin
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Color :
- Black
- Circuit Application :
- Power
- Contact Plating :
- Tin
- Factory Lead Time :
- 16 Weeks
- Pitch :
- 2.9972mm
- Contact Material :
- Brass
- Current Rating :
- 5A
- Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyamide (PA), Nylon
- Min Operating Temperature :
- -40°C
- Termination :
- Solder
- Lifecycle Status :
- ACTIVE (Last Updated: 6 days ago)
- Operating Supply Voltage :
- 250V
- Number of Power Positions :
- 2
- Sealable :
- No
- Mount :
- Surface Mount
- Insulation Height :
- 0.290 7.37mm
- Height :
- 8.11mm
- ELV :
- Compliant
- Published :
- 2008
- Number of Positions :
- 2
- VDE Tested :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- GENERAL PURPOSE
- Voltage - Rated :
- 250V
- Number of Positions Loaded :
- All
- Series :
- Micro MATE-N-LOK
- Contact Shape :
- Square
- Length :
- 3.86mm
- Depth :
- 15.63mm
- Number of Contacts :
- 2
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- Orientation :
- RIGHT ANGLE
- Shrouding :
- Shrouded - 4 Wall
- Approval Agency :
- CSA
- Max Operating Temperature :
- 221°C
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Packaging :
- Tape and Reel (TR)
- Current Rating (Amps) :
- Varies by WireGAuge
- Housing Color :
- Black
- Fastening Type :
- Locking Ramp
- Width :
- 6.86mm
- Housing Material :
- Nylon
- Number of Ports :
- 1
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Type :
- Male Pin
- Connector Type :
- Header
- RoHS Status :
- RoHS Compliant
- PCB Thickness :
- 1.57mm
- Operating Temperature :
- -40°C~105°C
- Plating :
- Tin
- Max Voltage Rating (AC) :
- 250V
- Feature :
- Board Lock
- Lead Free :
- Lead Free
- Insulation Color :
- Black
- Datasheets
- 3-794624-2
Micro MATE-N-LOK Series 2-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 2-Position Board to Cable/Wire 0.290 7.37mm Height
3-794624-2 Overview
The product comes in a package of Header.Surface Mount, Right Angle is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the Micro MATE-N-LOK Series.Use it when the temperature is below 221°C.Temperatures below -40°C are required for this device to operate.The device has 1 ports for managing a variety of tasks.The device may be used for the following applications: General Purpose.It is more powerful in many ways due to its Board Lock feature.It is mounted by Surface Mount.It has terminations of 2.Its operating supply voltage is 250V.It operates at an operating temperature of -40°C~105°C.
3-794624-2 Features
2 basic kinds of terminations
Micro MATE-N-LOK series
3-794624-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-794624-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
