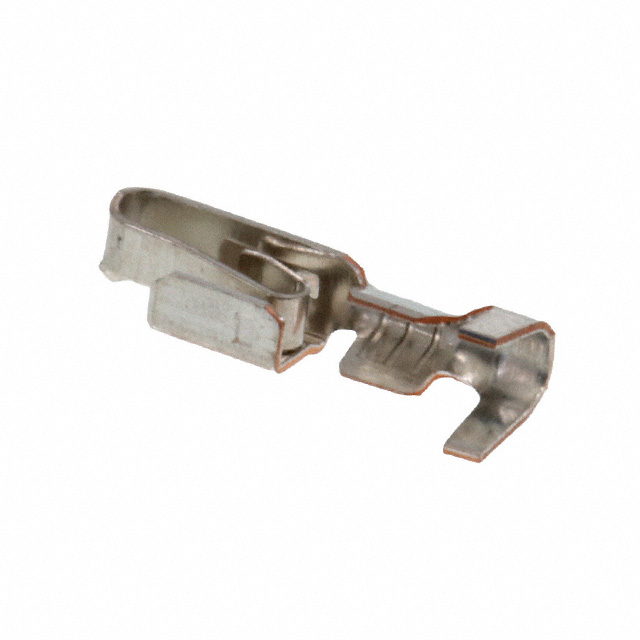

3-647409-1
Or copy the link below:
- Mfr.Part #
- 3-647409-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET 18-24AWG CRIMP TIN
- Stock
- 11,816
- In Stock ：
- 11,816
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Contacts
- Published :
- 2005
- Underplate Material :
- Nickel
- Max Operating Temperature :
- 221°C
- Pin or Socket :
- Socket
- Circuit Application :
- Power
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Radiation Hardening :
- No
- Length :
- 13.68mm
- Type :
- Power
- Number of Positions :
- 1
- Contact Termination :
- Crimp
- Contact Finish :
- Tin
- Termination :
- Crimp
- Orientation :
- Straight
- Connector Type :
- Socket
- Shielding :
- Unshielded
- Height :
- 3.81mm
- Wire Gauge :
- 18-24 AWG
- Contact Current Rating :
- 10A
- Wire/Cable Type :
- Discrete
- Depth :
- 3.94mm
- Current Rating :
- 10A
- Sealable :
- No
- Min Operating Temperature :
- -67°C
- Gender :
- FEMALE
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Material :
- Bronze
- Pitch :
- 250μm
- Mount :
- CABLE
- Operating Supply Voltage :
- 250V
- Plating Thickness :
- 2.03μm
- Packaging :
- Bulk
- Contact Plating :
- Tin
- Contact Resistance :
- 3mOhm
- Factory Lead Time :
- 13 Weeks
- Housing Material :
- Nylon
- Series :
- SL-156
- Contact Style :
- Standard
- Wire/Cable Gauge :
- 24 AWG
- Insulation Diameter :
- 2.84 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 3-647409-1
