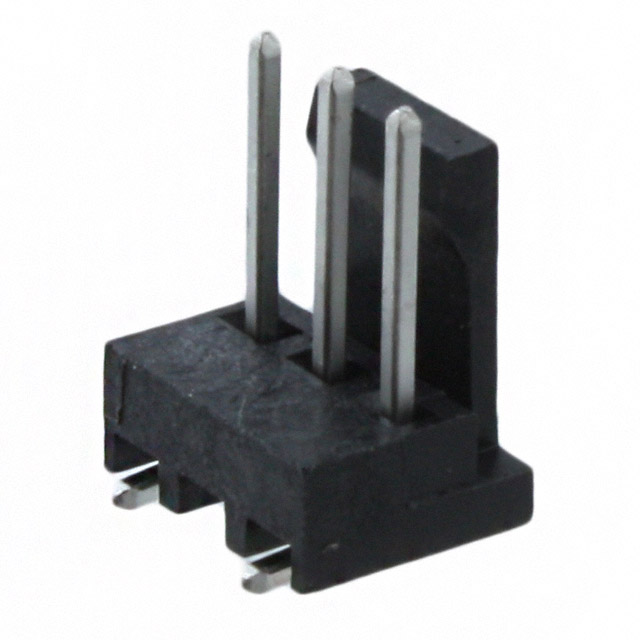

3-647166-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Connector Type :

Header

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Current Rating :

5A

Sealable :

No

Insulation Material :

Polyamide (PA46), Nylon 4/6

Flammability Rating :

UL94 V-0

Contact Style :

Straight

Pitch - Mating :

0.100 2.54mm

Orientation :

Vertical

Total Number of Contacts :

3

Terminal Pitch :

2.54mm

ELV :

Compliant

PCB Mount Alignment :

Without

Max Voltage Rating (AC) :

250V

Body Breadth :

0.25 inch

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shrouding :

Shrouded - 1 Wall

Material Flammability Rating :

UL94 V-0

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Mating Retention :

With

Factory Lead Time :

19 Weeks

Number of Conductors :

ONE

Mating Post Length :

7.37mm

Insulation Height :

0.347 8.81mm

Dielectric Withstanding Voltage :

750VAC V

Underplate Material :

Nickel

Number of Positions :

3

Published :

2008

Depth :

6.35mm

Contact Shape :

Square

Voltage - Rated :

250VAC

Fastening Type :

Friction Lock

PCB Contact Pattern :

STAGGERED

Contact Gender :

Male

Termination :

Solder

Plating Thickness :

6.3μm

MIL Conformance :

No

Number of Positions Loaded :

All

Current Rating (Amps) :

Varies by WireGAuge

Contact Finish - Mating :

Tin

Height :

8.81mm

Approval Agency :

CSA

Applications :

GENERAL PURPOSE

ECCN Code :

EAR99

Pbfree Code :

yes

Operating Temperature :

-55°C~105°C

Circuit Application :

Signal

Insulation Resistance :

5000000000Ohm

Style :

Board to Cable/Wire

Series :

MTA-100

Mounting Type :

Surface Mount

IEC Conformance :

No

Contact Current Rating :

5A

PCB Contact Row Spacing :

2.9972 mm

RoHS Status :

RoHS Compliant

Mixed Contacts :

No

Contact Length - Mating :

0.290 7.37mm

Voltage - Rated AC :

250V

PCB Thickness :

250μm

Number of Rows :

1

Durability :

25 Cycles

Mount :

Surface Mount

Housing Color :

Black

Lead Free :

Lead Free

Length :

7.62mm

Operating Supply Voltage :

250V

Contact Material :

COPPER ALLOY

Lead Length :

3.18mm

Polarization Key :

POLARIZED HOUSING

Filter Feature :

No

Contact Resistance :

6mOhm

Contact Type :

Male Pin

DIN Conformance :

No

Insertion Force-Max :

8.896 N

Housing Material :

Nylon
