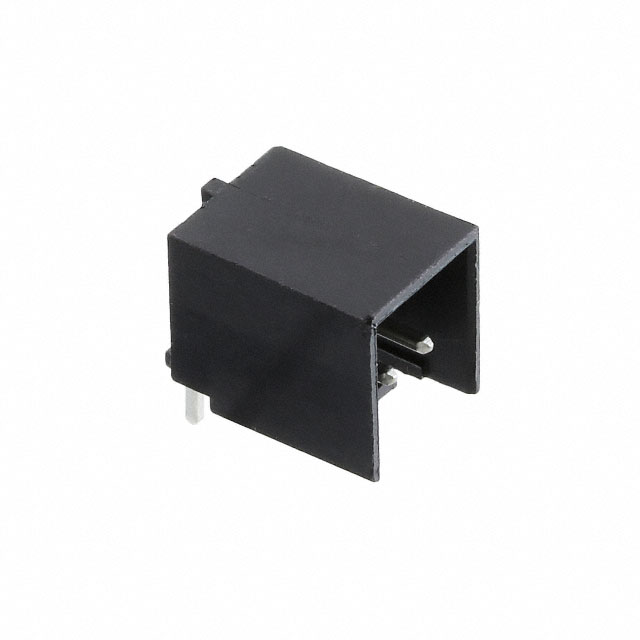

3-644894-2
Or copy the link below:
- Mfr.Part #
- 3-644894-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS 2.54MM
- Stock
- 74
- In Stock ：
- 74
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Length - Post :
- 0.130 3.30mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Underplate Material :
- Nickel
- Contact Material :
- COPPER ALLOY
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- General Purpose, Lighting
- Current Rating (Amps) :
- Varies by WireGAuge
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Housing Material :
- Polyester
- Mount :
- Through Hole
- Number of Contacts :
- 2
- Mating Post Length :
- 7.112mm
- Contact Resistance :
- 6mOhm
- Length - Tail :
- 3.3mm
- Operating Temperature :
- -55°C~105°C
- Contact Finish - Post :
- Tin
- Lead Length :
- 3.56mm
- Length :
- 7.21mm
- Series :
- CST-100
- Plating Thickness :
- 6.35μm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Pitch :
- 2.54mm
- Lead Free :
- Lead Free
- PCB Mount Alignment :
- Without
- Packaging :
- Bulk
- Current Rating :
- 4A
- Connector Type :
- Header
- Operating Supply Voltage :
- 250V
- Depth :
- 10.41mm
- Insulation Material :
- Polyester
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 221°C
- Mating Retention :
- With
- Height :
- 10.41mm
- Plating :
- Tin
- Insulation Color :
- Black
- Contact Plating :
- Tin
- Sealable :
- No
- Contact Type :
- Male Pin
- ELV :
- Compliant
- Number of Positions :
- 2
- Number of Positions Loaded :
- All
- Housing Color :
- Black
- Orientation :
- RIGHT ANGLE
- Contact Finish - Mating :
- Tin
- Published :
- 2008
- Mounting Type :
- Through Hole, Right Angle
- Approval Agency :
- CSA
- Factory Lead Time :
- 17 Weeks
- Number of Rows :
- 1
- PCB Mount Retention :
- Without
- Voltage - Rated AC :
- 250V
- Contact Length - Mating :
- 0.280 7.11mm
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.313 7.95mm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Shape :
- Square
- Min Operating Temperature :
- -67°C
- Voltage - Rated :
- 250VAC
- Contact Gender :
- Male
- PCB Thickness :
- 1.6002mm
- Max Voltage Rating (AC) :
- 250V
- Circuit Application :
- Signal
- Contact Current Rating :
- 4A
- Fastening Type :
- Friction Lock
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- Datasheets
- 3-644894-2
CST-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Tin Polyester 2-Position Board to Cable/Wire 0.313 7.95mm Height
3-644894-2 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the CST-100 Series of products.Whenever it's below 221°C, it's best to use it.The device must operate at a temperature of -67°C at all times.It is possible for the device to be used for the application General Purpose, Lighting.Through Hole mounts the part.A voltage of 250V is required to operate this memory.There is no operating temperature for the device.
3-644894-2 Features
CST-100 series
3-644894-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-644894-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
