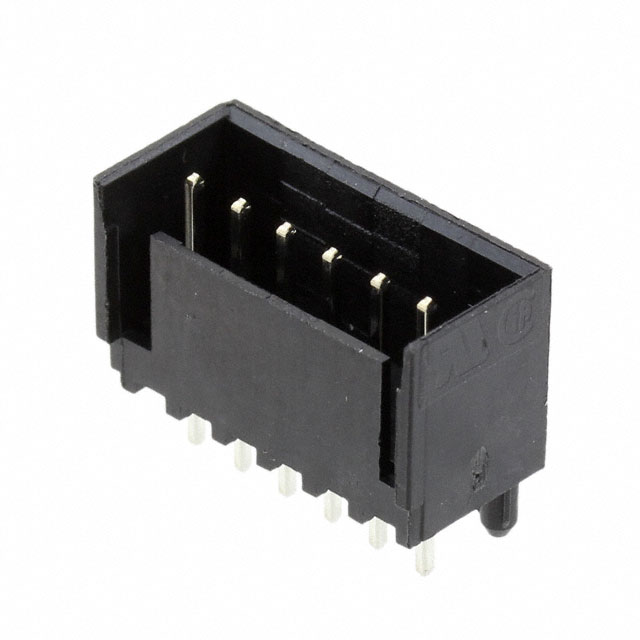

3-644893-6
Or copy the link below:
- Mfr.Part #
- 3-644893-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 2.54MM
- Stock
- 4,594
- In Stock ：
- 4,594
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Circuit Application :
- Signal
- Contact Finish - Post :
- Tin
- Sealable :
- No
- Number of Rows :
- 1
- ELV :
- Compliant
- Contact Length - Mating :
- 0.280 7.11mm
- Factory Lead Time :
- 18 Weeks
- Shrouding :
- Shrouded - 4 Wall
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated AC :
- 250V
- Mating Retention :
- With
- PCB Thickness :
- 1.6002mm
- Style :
- Board to Cable/Wire
- Mounting Type :
- Through Hole
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Bulk
- Overall Contact Length :
- 0.520 13.21mm
- Contact Shape :
- Square
- RoHS Status :
- RoHS Compliant
- PCB Mount Retention :
- With
- Series :
- CST-100
- Number of Positions :
- 6
- Current Rating (Amps) :
- Varies by WireGAuge
- Orientation :
- Vertical
- Contact Finish - Mating :
- Tin
- Number of Contacts :
- 6
- Number of Positions Loaded :
- All
- Operating Supply Voltage :
- 250V
- Contact Length - Post :
- 0.140 3.56mm
- Fastening Type :
- Friction Lock
- Mount :
- Through Hole
- Contact Material :
- COPPER ALLOY
- Pitch :
- 2.54mm
- Operating Temperature :
- -55°C~105°C
- Contact Plating :
- Tin
- Current Rating :
- 4A
- Approval Agency :
- CSA
- Max Operating Temperature :
- 221°C
- Plating Thickness :
- 6.35μm
- Contact Current Rating :
- 4A
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Published :
- 2010
- Length :
- 17.3736mm
- Housing Material :
- Polyester
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Mount Alignment :
- With
- Connector Type :
- Header
- Height :
- 10.41mm
- Mating Post Length :
- 7.112mm
- Min Operating Temperature :
- -67°C
- Color :
- Black
- Housing Color :
- Black
- Contact Style :
- Straight
- Plating :
- Tin
- Insulation Color :
- Black
- Feature :
- Board Guide
- PCB Mounting Orientation :
- Vertical
- Insulation Height :
- 0.410 10.41mm
- Length - Tail :
- 3.56mm
- Termination :
- Solder
- Contact Type :
- Male Pin
- Flammability Rating :
- UL94 V-0
- Applications :
- General Purpose, Lighting
- Underplate Material :
- Nickel
- Voltage - Rated :
- 250VAC
- Insulation Material :
- Polyester
- Datasheets
- 3-644893-6
CST-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polyester 6-Position Board to Cable/Wire 0.410 10.41mm Height
3-644893-6 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the CST-100 Series.Use it below 221°C.A minimum temperature of -67°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose, Lighting.In many ways, Board Guide makes it more powerful.By Through Hole, the part is mounted.The operating voltage of this memory is 250V.Operating temperature is set to -55°C~105°C.
3-644893-6 Features
CST-100 series
3-644893-6 Applications
There are a lot of TE Connectivity AMP Connectors
3-644893-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
