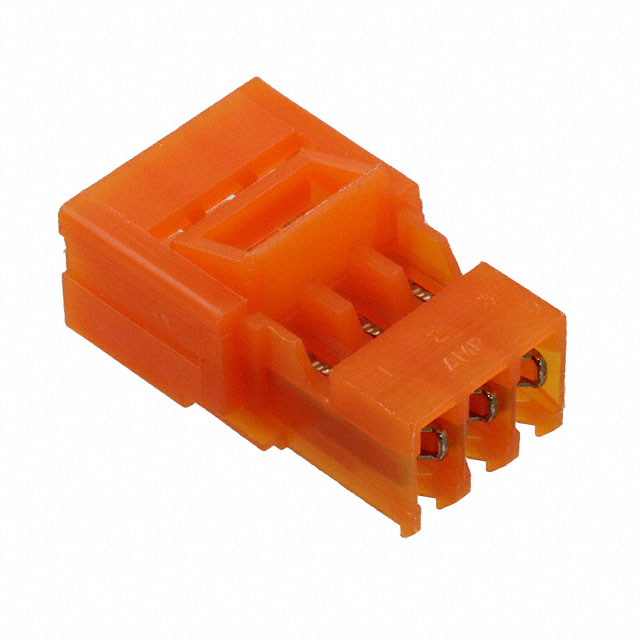

3-644807-3
Or copy the link below:
- Mfr.Part #
- 3-644807-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 3POS IDC 18AWG GOLD
- Stock
- 186
- In Stock ：
- 186
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Feature :
- Closed End
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Shrouding :
- yes
- Published :
- 2005
- Contact Retention :
- With
- Termination :
- IDC
- Number of Rows :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Gender :
- Male
- Length :
- 15.8496mm
- Underplate Material :
- Nickel
- Height :
- 12.3698mm
- Circuit Application :
- Power
- Flammability Rating :
- UL94 V-2
- Approval Agency :
- CSA
- Housing Color :
- Orange
- Contact Type :
- Male Pin
- Wire Gauge :
- 18 AWG
- Number of Contacts :
- 3
- Series :
- MTA-156
- Plating Thickness :
- 5.08μm
- Wire Type :
- Discrete or Ribbon Cable
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- RoHS Status :
- RoHS Compliant
- Cable Termination :
- IDC
- Factory Lead Time :
- 16 Weeks
- Housing Material :
- Nylon
- Number of Power Positions :
- 3
- Contact Plating :
- Tin, Gold
- Sealable :
- No
- Operating Supply Voltage :
- 600V
- Mount :
- Cable, Free Hanging
- Connector Type :
- PLUG
- Max Voltage Rating (AC) :
- 600V
- Wire/Cable Type :
- Discrete
- Lead Free :
- Not Applicable
- Number of Positions :
- 3
- Radiation Hardening :
- No
- Current Rating :
- 7A
- Orientation :
- RIGHT ANGLE
- Color :
- Orange
- Wire/Cable Gauge :
- 18 AWG
- Pitch :
- 0.156 3.96mm
- Max Operating Temperature :
- 221°C
- Insulation Diameter :
- 2.413 mm
- Packaging :
- Bulk
- Contact Resistance :
- 3mOhm
- Min Operating Temperature :
- -67°C
- Contact Current Rating :
- 7A
- Datasheets
- 3-644807-3
3-644807-3 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
