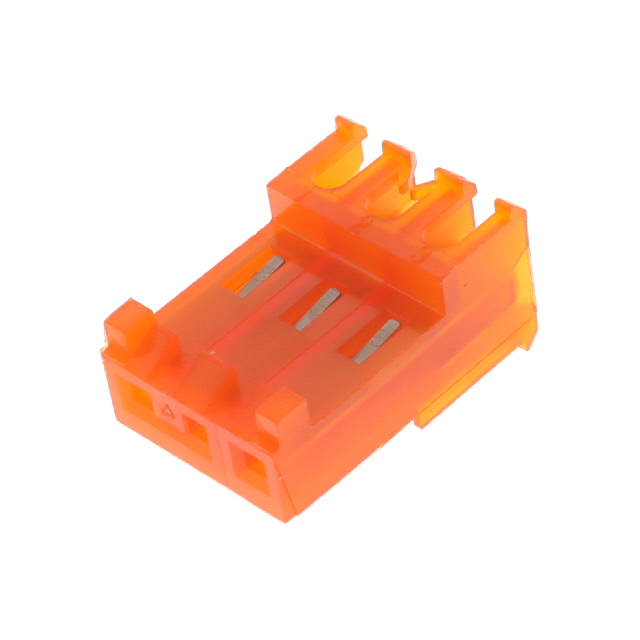

3-644718-3
Or copy the link below:
- Mfr.Part #
- 3-644718-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 3POS IDC 18AWG GOLD
- Stock
- 1,975
- In Stock ：
- 1,975
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Max Voltage Rating (AC) :
- 600V
- Width :
- 9.779mm
- Max Operating Temperature :
- 221°C
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Color :
- Orange
- Packaging :
- Bulk
- Circuit Application :
- Power
- Contact Gender :
- FEMALE
- Wire Gauge :
- 18 AWG
- Length :
- 11.8872mm
- Depth :
- 9.78mm
- Plating Thickness :
- 760 nm
- Cable Termination :
- IDC
- Wire/Cable Gauge :
- 18 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -67°C
- Pitch :
- 0.156 3.96mm
- Mating Alignment :
- With
- Wire/Cable Type :
- Discrete
- Voltage - Rated :
- 600V
- Series :
- MTA-156
- Contact Retention :
- With
- Mounting Type :
- Free Hanging (In-Line)
- Sealable :
- No
- Flammability Rating :
- UL94 V-2
- ELV :
- Compliant
- Contact Shape :
- Square
- Radiation Hardening :
- No
- Published :
- 2008
- Number of Contacts :
- 3
- Factory Lead Time :
- 16 Weeks
- Feature :
- Feed Through, Polarizing Key
- Wire Type :
- Discrete or Ribbon Cable
- Insulation Diameter :
- 2.41 mm
- Shrouding :
- No
- Current Rating :
- 7A
- Orientation :
- RIGHT ANGLE
- Contact Resistance :
- 3mOhm
- Housing Material :
- Nylon
- Height :
- 9.779mm
- Underplate Material :
- Nickel
- Termination :
- IDC, IDT
- Mount :
- Cable, Free Hanging
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Finish :
- Gold
- Fastening Type :
- Locking Ramp
- Mating Retention :
- With
- Contact Type :
- Female Socket
- Operating Supply Voltage :
- 600V
- Number of Rows :
- 1
- RoHS Status :
- RoHS Compliant
- Approval Agency :
- CSA
- Number of Positions :
- 3
- Voltage - Rated AC :
- 600V
- Connector Type :
- Receptacle
- Contact Plating :
- Tin, Gold
- Housing Color :
- Orange, White
- Lead Free :
- Not Applicable
- Contact Current Rating :
- 7A
- Datasheets
- 3-644718-3
3-644718-3 Documents
3-644718-3 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
