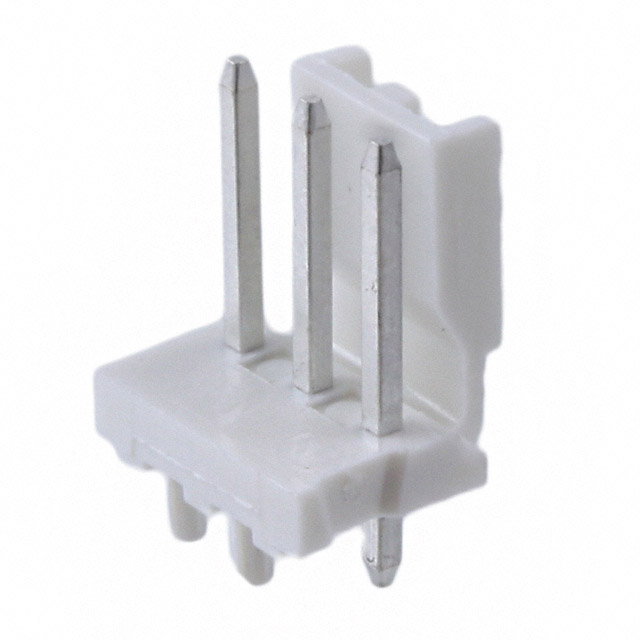

3-644615-3
Or copy the link below:
- Mfr.Part #
- 3-644615-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 3.96MM
- Stock
- 13,241
- In Stock ：
- 13,241
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pbfree Code :
- yes
- Contact Length - Post :
- 0.125 3.18mm
- Circuit Application :
- Power
- UL Flammability Code :
- 94V-0
- Contact Resistance :
- 3mOhm
- Contact Gender :
- Male
- Number of Power Positions :
- 3
- Insertion Force-Max :
- .8896 N
- Durability :
- 25 Cycles
- Contact Current Rating :
- 7A
- JESD-609 Code :
- e3
- Contact Finish - Mating :
- Tin
- Style :
- Board to Cable/Wire
- Contact Type :
- Male Pin
- Insulation Material :
- Thermoplastic, Glass Filled
- DIN Conformance :
- No
- Plating Thickness :
- 150μm
- ECCN Code :
- EAR99
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Mixed Contacts :
- No
- IEC Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Fastening Type :
- Friction Lock
- RoHS Status :
- RoHS Compliant
- Overall Contact Length :
- 0.700 17.78mm
- Body Breadth :
- 0.425 inch
- Polarization Key :
- POLARIZED HOUSING
- Reliability :
- COMMERCIAL
- Operating Supply Voltage :
- 600V
- Contact Retention :
- Without
- Lead Free :
- Lead Free
- Voltage - Rated :
- 600VAC
- Current Rating :
- 7A
- Insulation Resistance :
- 5000000000Ohm
- Depth :
- 10.8mm
- Mounting Type :
- Through Hole
- Length :
- 11.76mm
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Number of Rows :
- 1
- Dielectric Withstanding Voltage :
- 2200VAC V
- Number of Conductors :
- ONE
- Contact Shape :
- Square
- Operating Temperature :
- -55°C~105°C
- Applications :
- General Purpose, Industrial
- Mount :
- Through Hole
- Factory Lead Time :
- 16 Weeks
- Shrouding :
- Shrouded - 1 Wall
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Insulation Height :
- 0.545 13.84mm
- Feature :
- Board Guide
- Voltage - Rated AC :
- 600V
- Pitch - Mating :
- 0.156 3.96mm
- Published :
- 2008
- Contact Length - Mating :
- 0.450 11.43mm
- Height :
- 13.843mm
- Approval Agency :
- CSA
- Connector Type :
- Header
- Housing Material :
- Polyester
- MIL Conformance :
- No
- Orientation :
- Vertical
- Number Of PCB Rows :
- 1
- Underplate Material :
- Nickel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Natural
- Sealable :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Current Rating (Amps) :
- Varies by WireGAuge
- Series :
- MTA-156
- Filter Feature :
- No
- Lead Length :
- 3.18mm
- Mating Post Length :
- 11.43mm
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- Max Voltage Rating (AC) :
- 600V
- PCB Thickness :
- 1.57mm
- ELV :
- Compliant
- Datasheets
- 3-644615-3
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Tin Thermoplastic, Glass Filled Board to Cable/Wire 0.545 13.84mm Height
3-644615-3 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the MTA-156 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose, Industrial.A number of features make the Board Guide feature more powerful.Through Hole represents the mounting point for the part.You're going to need 600V to power this memory.-55°C~105°C Operating Temperature is the default operating temperature for the device.
3-644615-3 Features
MTA-156 series
3-644615-3 Applications
There are a lot of TE Connectivity AMP Connectors
3-644615-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
