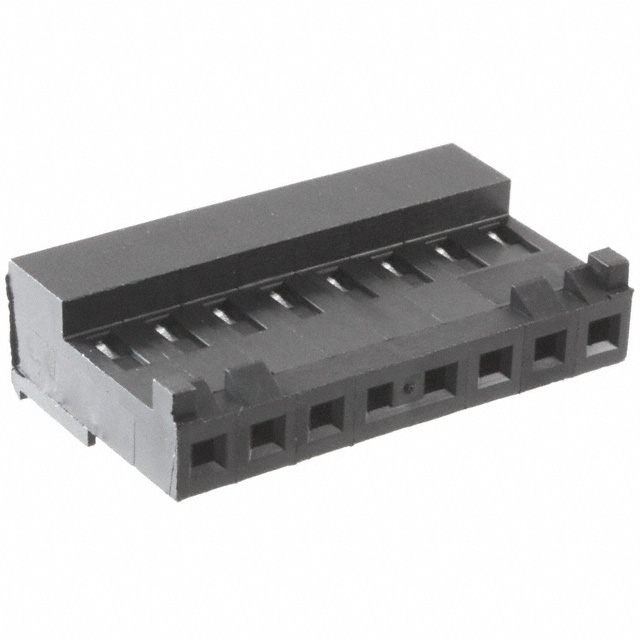

3-644381-8
Or copy the link below:
- Mfr.Part #
- 3-644381-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 8POS IDC 18AWG TIN
- Stock
- 34,191
- In Stock ：
- 34,191
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- ELV :
- Compliant
- Body Breadth :
- 0.355 inch
- Shrouding :
- No
- Additional Feature :
- POLARIZED
- Series :
- MTA-156
- RoHS Status :
- RoHS Compliant
- Durability :
- 25 Cycles
- Dielectric Withstanding Voltage :
- 2200VAC V
- Fastening Type :
- Locking Ramp
- Mixed Contacts :
- No
- Orientation :
- RIGHT ANGLE
- Filter Feature :
- No
- Wire/Cable Gauge :
- 18 AWG
- Feature :
- Closed End, Polarizing Key
- Option :
- GENERAL PURPOSE
- Reference Standard :
- UL, CSA
- UL Flammability Code :
- 94V-0
- Contact Gender :
- FEMALE
- Rated Current (Signal) :
- 7A
- Termination Type :
- IDC
- Flammability Rating :
- UL94 V-0
- Max Operating Temperature :
- 105°C
- Length :
- 31.7mm
- Connector Type :
- Receptacle
- Mount :
- Cable, Free Hanging
- Published :
- 2008
- Wire Gauge :
- 18 AWG
- IEC Conformance :
- No
- Housing Material :
- Nylon
- Pitch :
- 0.156 3.96mm
- Lead Free :
- Not Applicable
- Wire/Cable Type :
- Discrete
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Contact Finish :
- Tin
- Contact Resistance :
- 3mOhm
- Pbfree Code :
- yes
- Total Number of Contacts :
- 8
- Contact Material :
- COPPER ALLOY
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Polarization Key :
- POLARIZED HOUSING
- Depth :
- 9.02mm
- DIN Conformance :
- No
- Min Operating Temperature :
- -55°C
- Reliability :
- COMMERCIAL
- Contact Type :
- Female Socket
- Wire Type :
- Discrete or Ribbon Cable
- Cable Termination :
- IDC
- Insulation Resistance :
- 5000000000Ohm
- Mounting Type :
- Free Hanging (In-Line)
- Number of Positions :
- 8
- Packaging :
- Bulk
- Number of Rows :
- 1
- Color :
- Black
- JESD-609 Code :
- e3
- Max Voltage Rating (AC) :
- 600V
- Datasheets
- 3-644381-8
