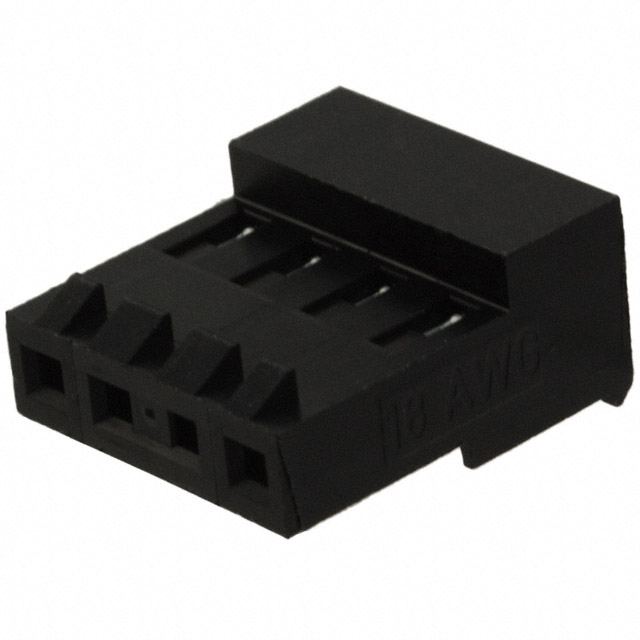

3-644329-4
Or copy the link below:
- Mfr.Part #
- 3-644329-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS IDC 18AWG TIN
- Stock
- 24,816
- In Stock ：
- 24,816
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Voltage - Rated :
- 250V
- Current Rating :
- 5A
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Flammability Rating :
- UL94 V-0
- Depth :
- 9.02mm
- Pbfree Code :
- yes
- Connector Type :
- Receptacle
- Body Breadth :
- 0.355 inch
- Length :
- 15.85mm
- Number of Rows :
- 1
- Wire Type :
- Discrete or Ribbon Cable
- Contact Gender :
- FEMALE
- Published :
- 2007
- Series :
- MTA-156
- JESD-609 Code :
- e3
- Insulation Resistance :
- 5000000000Ohm
- Termination Type :
- IDC
- Wire/Cable Type :
- Discrete
- Shrouding :
- No
- Polarization Key :
- POLARIZED HOUSING
- ECCN Code :
- EAR99
- Mounting Type :
- Free Hanging (In-Line)
- Total Number of Contacts :
- 4
- IEC Conformance :
- No
- Housing Material :
- Nylon
- MIL Conformance :
- No
- Color :
- Black
- Fastening Type :
- Locking Ramp
- Contact Finish :
- Tin
- Packaging :
- Bulk
- Filter Feature :
- No
- Feature :
- Closed End
- Contact Type :
- Female Socket
- Plating Thickness :
- 80μin
- Max Voltage Rating (AC) :
- 600V
- Max Operating Temperature :
- 105°C
- Option :
- GENERAL PURPOSE
- Contact Material :
- COPPER ALLOY
- DIN Conformance :
- No
- Orientation :
- RIGHT ANGLE
- Dielectric Withstanding Voltage :
- 2200VAC V
- Cable Termination :
- IDC
- Pitch :
- 0.156 3.96mm
- Wire/Cable Gauge :
- 18 AWG
- Wire Gauge :
- 18 AWG
- Contact Resistance :
- 3mOhm
- Durability :
- 25 Cycles
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 4
- Min Operating Temperature :
- -55°C
- RoHS Status :
- RoHS Compliant
- Reference Standard :
- UL, CSA
- Mount :
- Cable, Free Hanging
- Mixed Contacts :
- No
- Reliability :
- COMMERCIAL
- Datasheets
- 3-644329-4
3-644329-4 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
