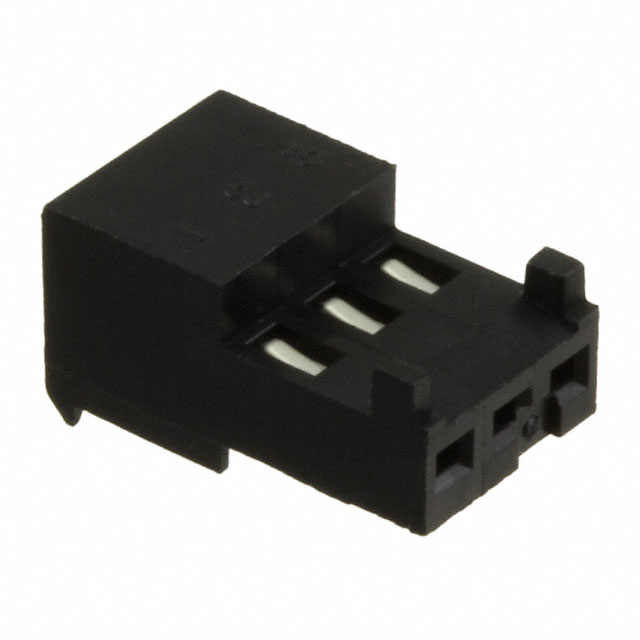

3-644313-3
Or copy the link below:
- Mfr.Part #
- 3-644313-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 3POS IDC 26AWG TIN
- Stock
- 4,069
- In Stock ：
- 4,069
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Series :
- MTA-100
- Width :
- 6.985mm
- Mating Retention :
- With
- Pbfree Code :
- yes
- Contact Finish :
- Tin
- UL Flammability Code :
- 94V-0
- Mount :
- Free Hanging
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- No
- Dielectric Withstanding Voltage :
- 750VAC V
- Fastening Type :
- Locking Ramp
- Body Breadth :
- 0.275 inch
- Rated Current (Signal) :
- 5A
- Orientation :
- RIGHT ANGLE
- IEC Conformance :
- No
- Connector Type :
- Receptacle
- Packaging :
- Bulk
- Factory Lead Time :
- 19 Weeks
- Color :
- Black
- Height :
- 6.99mm
- Option :
- GENERAL PURPOSE
- Sealable :
- No
- Contact Resistance :
- 6mOhm
- Current Rating :
- 5A
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Approval Agency :
- CSA
- Max Operating Temperature :
- 221°C
- JESD-609 Code :
- e3
- Wire Type :
- Discrete or Ribbon Cable
- Operating Supply Voltage :
- 250V
- Voltage - Rated AC :
- 250V
- Insulation Diameter :
- 1.52 mm
- DIN Conformance :
- No
- Max Voltage Rating (AC) :
- 250V
- Circuit Application :
- Signal
- Underplate Material :
- Nickel
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Total Number of Contacts :
- 3
- Voltage - Rated :
- 250V
- Contact Gender :
- FEMALE
- Published :
- 2008
- Cable Termination :
- IDC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -67°C
- Number of Rows :
- 1
- ECCN Code :
- EAR99
- Contact Current Rating :
- 5A
- Length :
- 7.62mm
- Pitch :
- 0.100 2.54mm
- MIL Conformance :
- No
- Contact Type :
- Female Socket
- Depth :
- 6.99mm
- Plating Thickness :
- 5.08μm
- Wire/Cable Type :
- Discrete
- Filter Feature :
- No
- Wire/Cable Gauge :
- 26 AWG
- Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- Feature :
- Closed End
- Number of Positions :
- 3
- Wire Gauge :
- 26 AWG
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Polarization Key :
- POLARIZED HOUSING
- Insertion Force-Max :
- 8.896 N
- Durability :
- 25 Cycles
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Nylon
- Datasheets
- 3-644313-3
3-644313-3 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
