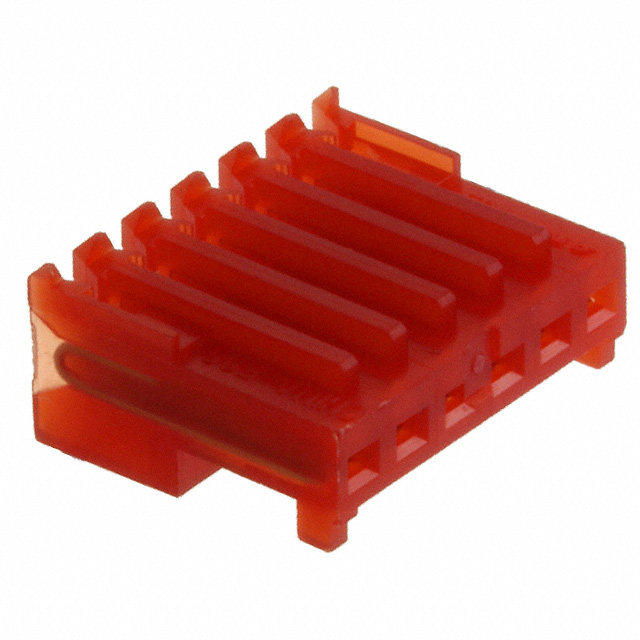

3-643813-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

Total Number of Contacts :

6

Durability :

25 Cycles

Contact Resistance :

6mOhm

Number of Rows :

1

Contact Type :

Female Socket

Contact Gender :

FEMALE

Option :

GENERAL PURPOSE

Body Breadth :

0.275 inch

Flammability Rating :

UL94 V-2

Published :

2003

Material :

Nylon

Contact Finish Thickness :

80.0μin 2.03μm

Sealable :

No

JESD-609 Code :

e3

Lead Pitch :

2.54mm

Polarization Key :

POLARIZED HOUSING

Contact Finish :

Tin

Cable Termination :

IDC

Packaging :

Bulk

Insulation Diameter :

1.52 mm

Mount :

Cable, Free Hanging

Housing Color :

Red, White

Color :

Red

Depth :

6.99mm

Lead Free :

Lead Free

Mating Retention :

With

Operating Supply Voltage :

250V

Wire/Cable Gauge :

22 AWG

Underplate Material :

Nickel

Feature :

Closed End

Filter Feature :

No

Fastening Type :

Locking Ramp

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Width :

6.99mm

Wire Gauge :

22 AWG

ELV :

Compliant

Series :

MTA-100

Wire Type :

Discrete or Ribbon Cable

Pitch :

0.100 2.54mm

Dielectric Withstanding Voltage :

750VAC V

Approval Agency :

CSA

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Max Voltage Rating (AC) :

250V

IEC Conformance :

No

Min Operating Temperature :

-67°C

Voltage - Rated AC :

250V

Current Rating :

5A

Height :

6.99mm

Number of Positions :

6

Plating Thickness :

5.08μm

Contact Current Rating :

5A

Connector Type :

Receptacle

Wire/Cable Type :

Discrete

Max Operating Temperature :

221°C

Voltage - Rated :

250V

Length :

15.24mm

DIN Conformance :

No

Factory Lead Time :

19 Weeks

UL Flammability Code :

94V-2

Termination :

IDC, IDT

MIL Conformance :

No

Mixed Contacts :

No

Reliability :

COMMERCIAL

Mounting Type :

Free Hanging (In-Line), Right Angle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

REACH SVHC :

No SVHC

Orientation :

RIGHT ANGLE

Circuit Application :

Signal
