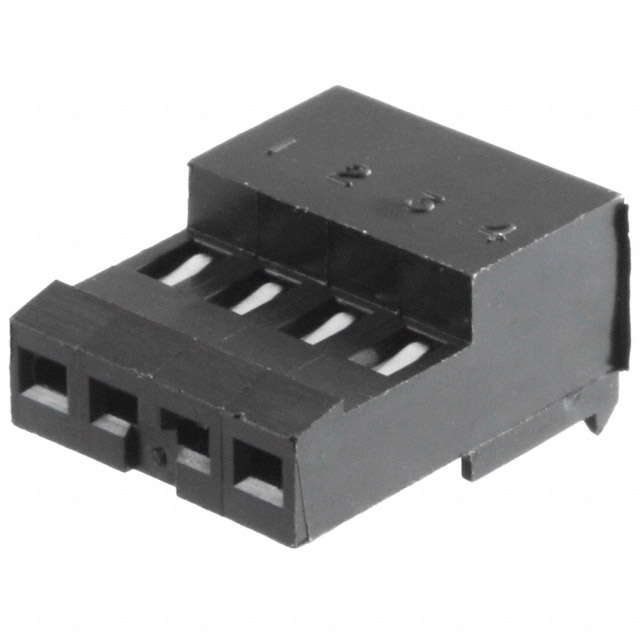

3-643498-4
Or copy the link below:
- Mfr.Part #
- 3-643498-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS IDC 22AWG TIN
- Stock
- 43,159
- In Stock ：
- 43,159
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Plating Thickness :
- 2.03μm
- ELV :
- Compliant
- Max Voltage Rating (AC) :
- 250V
- Termination :
- IDC, IDT
- Lead Free :
- Not Applicable
- Wire/Cable Gauge :
- 22 AWG
- Housing Material :
- Nylon
- Voltage - Rated :
- 250V
- Number of Rows :
- 1
- Wire Gauge :
- 22 AWG
- Underplate Material :
- Nickel
- Housing Color :
- Black
- Series :
- MTA-100
- Number of Positions :
- 4
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Shrouding :
- No
- Contact Plating :
- Tin
- Pitch :
- 0.100 2.54mm
- Packaging :
- Bulk
- Operating Supply Voltage :
- 250V
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Cable Termination :
- IDC
- Contact Gender :
- FEMALE
- Length :
- 10.16mm
- Min Operating Temperature :
- -67°C
- Circuit Application :
- Signal
- Radiation Hardening :
- No
- Mating Retention :
- With
- Connector Type :
- Receptacle
- RoHS Status :
- RoHS Compliant
- Feature :
- Closed End
- Orientation :
- RIGHT ANGLE
- Insulation Diameter :
- 1.52 mm
- Height :
- 6.99mm
- Contact Finish :
- Tin
- Contact Retention :
- With
- Contact Type :
- Female Socket
- Contact Current Rating :
- 5A
- Color :
- Black
- Sealable :
- No
- Wire Type :
- Discrete or Ribbon Cable
- Factory Lead Time :
- 18 Weeks
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated AC :
- 250V
- Approval Agency :
- CSA
- Flammability Rating :
- UL94 V-0
- Fastening Type :
- Locking Ramp
- Max Operating Temperature :
- 221°C
- Wire/Cable Type :
- Discrete
- Published :
- 2006
- Contact Resistance :
- 6mOhm
- Current Rating :
- 5A
- Depth :
- 6.99mm
- Mount :
- Cable, Free Hanging
- Number of Contacts :
- 4
- Width :
- 6.985mm
- Mating Alignment :
- Without
- Datasheets
- 3-643498-4
3-643498-4 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
Features:
• 4-position IDC receptacle connector
• 22 AWG tin-plated copper conductor
• Free hanging or panel mount
• Rated for up to 250V and 2A
• UL 94V-0 rated for flammability
• RoHS compliant
Applications: The TE Connectivity / AMP Rectangular Connectors - Free Hanging, Panel Mount 3-643498-4 is suitable for use in a variety of applications, including telecommunications, data communications, and industrial control systems. It is also suitable for use in consumer electronics, automotive, and medical applications.
