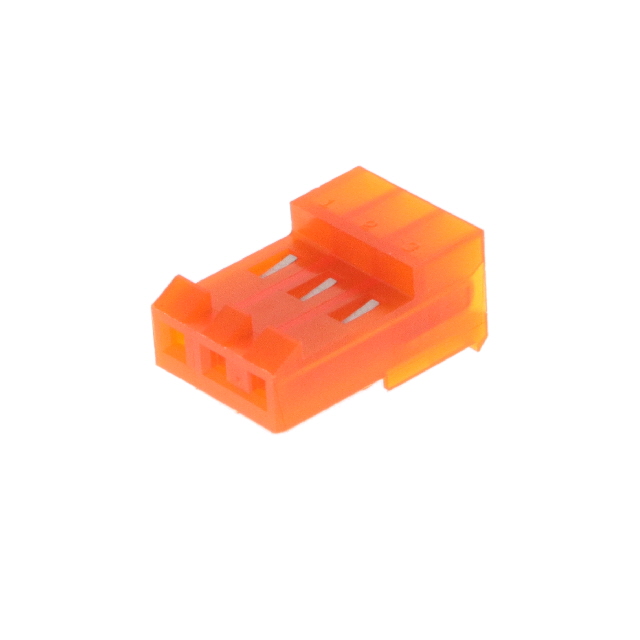

3-643191-3
Or copy the link below:
- Mfr.Part #
- 3-643191-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 3POS IDC 18AWG TIN
- Stock
- 396
- In Stock ：
- 396
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Number of Rows :
- 1
- MIL Conformance :
- No
- Length :
- 11.89mm
- Packaging :
- Bulk
- Wire Gauge :
- 18 AWG
- Orientation :
- RIGHT ANGLE
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Finish :
- Tin
- DIN Conformance :
- No
- Series :
- MTA-156
- Min Operating Temperature :
- -67°C
- Approval Agency :
- CSA
- JESD-609 Code :
- e3
- IEC Conformance :
- No
- UL Flammability Code :
- 94V-2
- ELV :
- Compliant
- Depth :
- 18.42mm
- Filter Feature :
- No
- Factory Lead Time :
- 16 Weeks
- Contact Gender :
- FEMALE
- Total Number of Contacts :
- 3
- Mixed Contacts :
- No
- Lead Free :
- Not Applicable
- Pbfree Code :
- yes
- Voltage - Rated AC :
- 600V
- Contact Current Rating :
- 7A
- Mounting Type :
- Free Hanging (In-Line)
- Termination Type :
- IDC
- Contact Type :
- Female Socket
- Option :
- GENERAL PURPOSE
- Contact Material :
- COPPER ALLOY
- Number of Power Positions :
- 3
- Insulation Diameter :
- 2.413 mm
- Fastening Type :
- Locking Ramp
- Cable Termination :
- IDC
- Max Operating Temperature :
- 221°C
- Current Rating :
- 7A
- Flammability Rating :
- UL94 V-2
- Contact Retention :
- With
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Circuit Application :
- Power
- Operating Supply Voltage :
- 600V
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Wire/Cable Type :
- Discrete
- Mount :
- Cable, Free Hanging
- Height :
- 9.02mm
- Color :
- Orange
- Underplate Material :
- Nickel
- Sealable :
- No
- Connector Type :
- Receptacle
- Width :
- 9.02mm
- Max Voltage Rating (AC) :
- 600V
- RoHS Status :
- RoHS Compliant
- Feature :
- Closed End
- Wire Type :
- Discrete or Ribbon Cable
- Pitch :
- 0.156 3.96mm
- Wire/Cable Gauge :
- 18 AWG
- Housing Material :
- Nylon
- Published :
- 2008
- Plating Thickness :
- 80μm
- Datasheets
- 3-643191-3
3-643191-3 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
