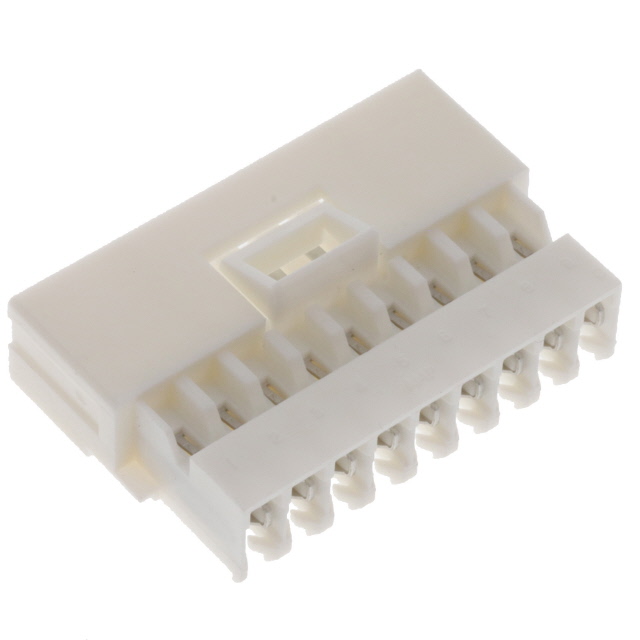

3-641438-9
Or copy the link below:
- Mfr.Part #
- 3-641438-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 9POS IDC 24AWG TIN
- Stock
- 410
- In Stock ：
- 410
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Wire/Cable Type :
- Discrete
- Depth :
- 12.37mm
- Pitch :
- 0.156 3.96mm
- Connector Type :
- PLUG
- Contact Plating :
- Tin
- Termination :
- IDC
- Current Rating :
- 7A
- Wire Gauge :
- 24 AWG
- Contact Finish :
- Tin
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Contact Type :
- Male Pin
- Number of Rows :
- 1
- Number of Power Positions :
- 9
- Mount :
- Free Hanging
- Operating Supply Voltage :
- 600V
- Packaging :
- Bulk
- Plating :
- Tin
- Circuit Application :
- Power
- Radiation Hardening :
- No
- Contact Gender :
- Male
- Housing Color :
- White
- Published :
- 2008
- Contact Current Rating :
- 7A
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 9
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -67°C
- Lead Free :
- Not Applicable
- Housing Material :
- Nylon
- Factory Lead Time :
- 15 Weeks
- Sealable :
- No
- Cable Termination :
- IDC
- Insulation Diameter :
- 2.413 mm
- Max Operating Temperature :
- 221°C
- Wire Type :
- Discrete or Ribbon Cable
- ELV :
- Compliant
- Plating Thickness :
- 80μm
- Wire/Cable Gauge :
- 24 AWG
- Contact Retention :
- With
- Flammability Rating :
- UL94 V-2
- Series :
- MTA-156
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Orientation :
- RIGHT ANGLE
- Feature :
- Closed End
- Color :
- White
- Underplate Material :
- Nickel
- Approval Agency :
- CSA
- Length :
- 39.62mm
- Contact Finish Thickness :
- 80.0μin 2.03μm
- Height :
- 12.37mm
- Contact Resistance :
- 3mOhm
- Max Voltage Rating (AC) :
- 600V
- Shrouding :
- yes
- Number of Contacts :
- 9
- Number of Signal Positions :
- 0
- Datasheets
- 3-641438-9
3-641438-9 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
