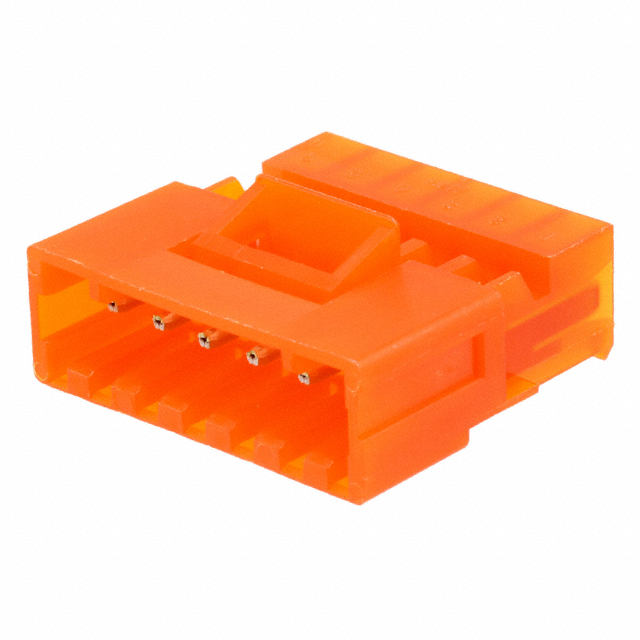

3-641435-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Free Hanging, Panel Mount

Sealable :

No

Packaging :

Bulk

Published :

2004

IEC Conformance :

No

Operating Supply Voltage :

600V

Contact Resistance :

3mOhm

Housing Material :

Nylon

Depth :

12.37mm

Contact Gender :

Male

ELV :

Compliant

UL Flammability Code :

94V-2

DIN Conformance :

No

Contact Finish :

Tin

Approval Agency :

CSA

Circuit Application :

Power

Total Number of Contacts :

6

Wire/Cable Type :

Discrete

ECCN Code :

EAR99

Rated Current (Signal) :

7A

Length :

27.74mm

Feature :

Closed End

Min Operating Temperature :

-67°C

Number of Rows :

1

Mounting Type :

Free Hanging (In-Line), Right Angle

Insulation Diameter :

2.413 mm

Contact Type :

Male Pin

Height :

12.37mm

Reliability :

COMMERCIAL

Current Rating :

7A

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Underplate Material :

Nickel

JESD-609 Code :

e3

Contact Material :

COPPER ALLOY

Orientation :

RIGHT ANGLE

Pitch :

0.156 3.96mm

Option :

GENERAL PURPOSE

Wire Type :

Discrete or Ribbon Cable

MIL Conformance :

No

Series :

MTA-156

Max Voltage Rating (AC) :

600V

Pbfree Code :

yes

Polarization Key :

POLARIZED HOUSING

RoHS Status :

RoHS Compliant

Contact Current Rating :

7A

Mixed Contacts :

No

Contact Retention :

With

Flammability Rating :

UL94 V-2

Wire/Cable Gauge :

18 AWG

Max Operating Temperature :

221°C

Lead Free :

Not Applicable

Filter Feature :

No

Durability :

25 Cycles

Plating Thickness :

80μm

Connector Type :

PLUG

Cable Termination :

IDC

Body Breadth :

0.487 inch

Termination Type :

IDC

Shrouding :

yes

Wire Gauge :

18 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Cable, Free Hanging

Factory Lead Time :

15 Weeks

Number of Power Positions :

6

Contact Finish Thickness :

80.0μin 2.03μm

Color :

Orange
