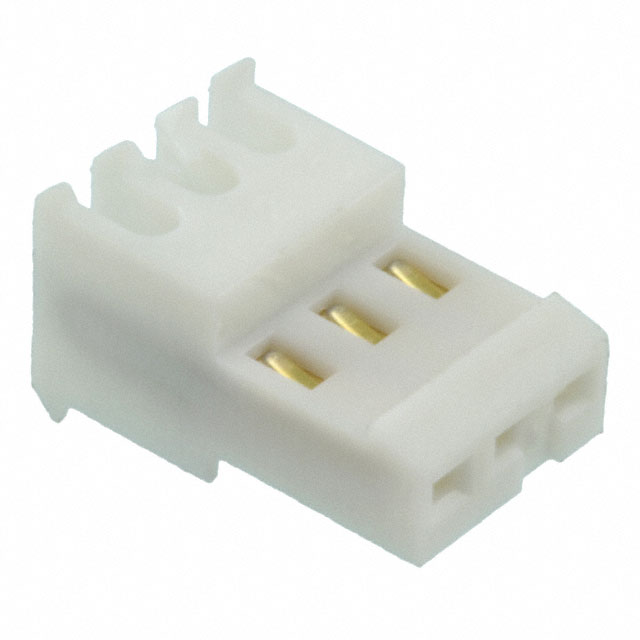

3-641242-3
Or copy the link below:
- Mfr.Part #
- 3-641242-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 3POS IDC 24AWG GOLD
- Stock
- 4,890
- In Stock ：
- 4,890
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Height :
- 7.75mm
- Pitch :
- 0.100 2.54mm
- RoHS Status :
- RoHS Compliant
- MIL Conformance :
- No
- Contact Type :
- Female Socket
- Flammability Rating :
- UL94 V-2
- Contact Resistance :
- 6mOhm
- Width :
- 7.747mm
- Current Rating :
- 5A
- Mixed Contacts :
- No
- Wire Gauge :
- 24 AWG
- Voltage - Rated :
- 250V
- Contact Plating :
- Tin, Gold
- Insulation Diameter :
- 1.52 mm
- Contact Material :
- COPPER ALLOY
- Wire Type :
- Discrete or Ribbon Cable
- Total Number of Contacts :
- 3
- Connector Type :
- Receptacle
- Option :
- GENERAL PURPOSE
- Termination :
- IDC, IDT
- Wire/Cable Type :
- Discrete
- Sealable :
- No
- Depth :
- 7.75mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Series :
- MTA-100
- Pbfree Code :
- yes
- IEC Conformance :
- No
- Orientation :
- RIGHT ANGLE
- Contact Gender :
- FEMALE
- Feature :
- Feed Through
- Max Operating Temperature :
- 221°C
- Packaging :
- Bulk
- Filter Feature :
- No
- Approval Agency :
- CSA
- Number of Rows :
- 1
- Fastening Type :
- Locking Ramp
- Number of Positions :
- 3
- Underplate Material :
- Nickel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Mating Retention :
- With
- Contact Finish Thickness :
- 30.0μin 0.76μm
- JESD-609 Code :
- e3
- Max Voltage Rating (AC) :
- 250V
- Plating Thickness :
- 760 nm
- Wire/Cable Gauge :
- 24 AWG
- Mount :
- Free Hanging
- Operating Supply Voltage :
- 250V
- Factory Lead Time :
- 17 Weeks
- UL Flammability Code :
- 94V-2
- Min Operating Temperature :
- -67°C
- Contact Current Rating :
- 5A
- Contact Finish :
- Gold
- Circuit Application :
- Signal
- Published :
- 2008
- Lead Free :
- Lead Free
- Voltage - Rated AC :
- 250V
- ELV :
- Compliant
- Length :
- 7.62mm
- Color :
- White
- Cable Termination :
- IDC
- DIN Conformance :
- No
- Housing Material :
- Nylon
- Datasheets
- 3-641242-3
3-641242-3 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
