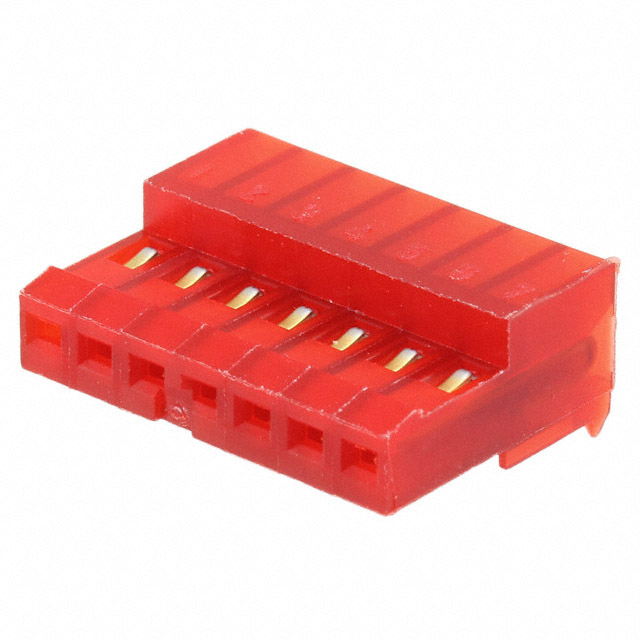

3-641237-7
Or copy the link below:
- Mfr.Part #
- 3-641237-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 7POS IDC 22AWG GOLD
- Stock
- 2,825
- In Stock ：
- 2,825
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Number of Positions :
- 7
- Housing Color :
- Red, White
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 7
- Mount :
- Cable, Free Hanging
- ELV :
- Compliant
- Orientation :
- RIGHT ANGLE
- Contact Plating :
- Tin, Gold
- Voltage - Rated AC :
- 250V
- Width :
- 6.985mm
- Termination :
- IDC, IDT
- Operating Supply Voltage :
- 250V
- Insulation Diameter :
- 1.52 mm
- Lead Free :
- Not Applicable
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Pitch :
- 0.100 2.54mm
- Series :
- MTA-100
- Color :
- Red
- Min Operating Temperature :
- -67°C
- Mating Alignment :
- Without
- Number of Rows :
- 1
- Voltage - Rated :
- 250V
- Packaging :
- Bulk
- Wire/Cable Type :
- Discrete
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Feature :
- Closed End
- Underplate Material :
- Nickel
- Mating Retention :
- With
- Housing Material :
- Nylon
- Wire Type :
- Discrete or Ribbon Cable
- Sealable :
- No
- Flammability Rating :
- UL94 V-2
- Contact Current Rating :
- 5A
- Circuit Application :
- Signal
- Current Rating :
- 5A
- Max Operating Temperature :
- 221°C
- Connector Type :
- Receptacle
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- Factory Lead Time :
- 18 Weeks
- Max Voltage Rating (AC) :
- 250V
- Plating Thickness :
- 760 nm
- Contact Gender :
- FEMALE
- Cable Termination :
- IDC
- Published :
- 2008
- Contact Type :
- Female Socket
- Length :
- 17.78mm
- Depth :
- 6.99mm
- Shrouding :
- No
- Fastening Type :
- Locking Ramp
- Wire/Cable Gauge :
- 22 AWG
- Contact Retention :
- With
- Contact Resistance :
- 6mOhm
- Approval Agency :
- CSA
- Height :
- 6.99mm
- Contact Finish :
- Gold
- Wire Gauge :
- 22 AWG
- Datasheets
- 3-641237-7
3-641237-7 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
