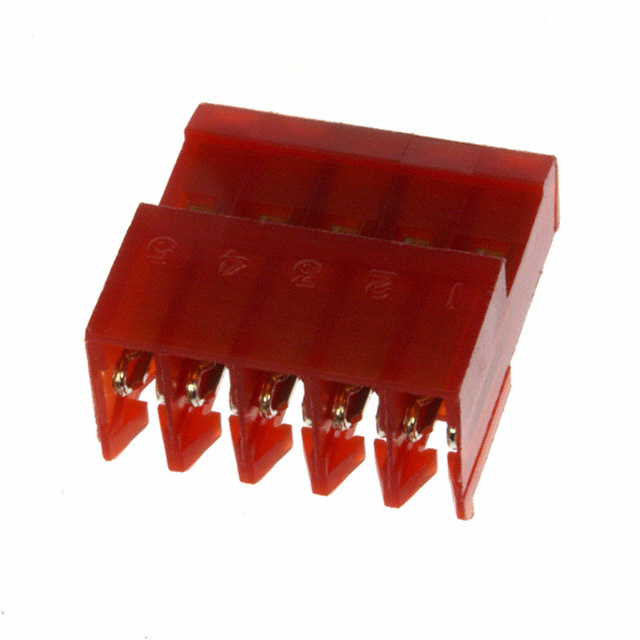

3-641237-5
Or copy the link below:
- Mfr.Part #
- 3-641237-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 5POS IDC 22AWG GOLD
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Fastening Type :
- Locking Ramp
- Contact Type :
- Female Socket
- Contact Resistance :
- 6mOhm
- Circuit Application :
- Signal
- Contact Retention :
- With
- Contact Material :
- COPPER ALLOY
- Width :
- 6.985mm
- Wire Type :
- Discrete or Ribbon Cable
- Contact Plating :
- Gold, Tin
- Contact Gender :
- FEMALE
- Pbfree Code :
- yes
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Height :
- 6.99mm
- Underplate Material :
- Nickel
- MIL Conformance :
- No
- Packaging :
- Bulk
- Contact Finish :
- Gold
- Connector Type :
- Receptacle
- Mixed Contacts :
- No
- ELV :
- Compliant
- Series :
- MTA-100
- Termination Type :
- IDC
- Wire Gauge :
- 22 AWG
- Pitch :
- 0.100 2.54mm
- Mating Alignment :
- Without
- Voltage - Rated :
- 250V
- Filter Feature :
- No
- Contact Current Rating :
- 5A
- Max Operating Temperature :
- 221°C
- Plating Thickness :
- 760 nm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- ECCN Code :
- EAR99
- Operating Supply Voltage :
- 250V
- Insulation Diameter :
- 1.52 mm
- Total Number of Contacts :
- 5
- Mount :
- Cable, Free Hanging
- Number of Rows :
- 1
- Wire/Cable Type :
- Discrete
- Depth :
- 6.99mm
- UL Flammability Code :
- 94V-2
- Factory Lead Time :
- 18 Weeks
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Housing Color :
- Red, White
- Approval Agency :
- CSA
- Length :
- 12.7mm
- Max Voltage Rating (AC) :
- 250V
- Flammability Rating :
- UL94 V-2
- Feature :
- Closed End
- Published :
- 2008
- Wire/Cable Gauge :
- 22 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 5A
- JESD-609 Code :
- e3
- Cable Termination :
- IDC
- Option :
- GENERAL PURPOSE
- IEC Conformance :
- No
- Lead Free :
- Not Applicable
- DIN Conformance :
- No
- Voltage - Rated AC :
- 250V
- Color :
- Red
- Min Operating Temperature :
- -67°C
- Orientation :
- RIGHT ANGLE
- Number of Positions :
- 5
- Housing Material :
- Nylon
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Datasheets
- 3-641237-5
3-641237-5 Documents
3-641237-5 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
