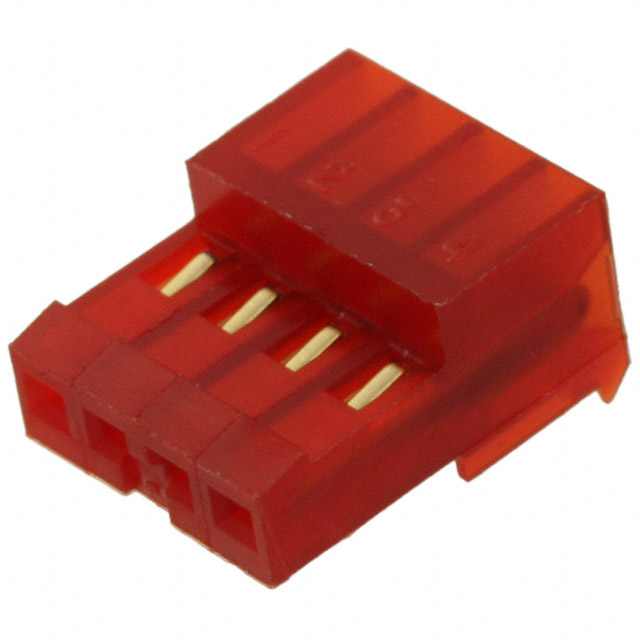

3-641237-4
Or copy the link below:
- Mfr.Part #
- 3-641237-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS IDC 22AWG GOLD
- Stock
- 779
- In Stock ：
- 779
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Termination :
- IDC, IDT
- MIL Conformance :
- No
- Lead Free :
- Not Applicable
- Contact Plating :
- Tin, Gold
- Height :
- 6.99mm
- JESD-609 Code :
- e3
- Feature :
- Closed End
- Contact Resistance :
- 6mOhm
- Wire/Cable Gauge :
- 22 AWG
- Sealable :
- No
- IEC Conformance :
- No
- Min Operating Temperature :
- -67°C
- Max Operating Temperature :
- 221°C
- Orientation :
- RIGHT ANGLE
- Length :
- 10.16mm
- Contact Current Rating :
- 5A
- Connector Type :
- Receptacle
- Wire Gauge :
- 22 AWG
- Depth :
- 6.99mm
- Cable Termination :
- IDC
- Total Number of Contacts :
- 4
- Wire Type :
- Discrete or Ribbon Cable
- Width :
- 6.985mm
- Underplate Material :
- Nickel
- Max Voltage Rating (AC) :
- 250V
- Mount :
- Cable, Free Hanging
- Voltage - Rated AC :
- 250V
- Number of Positions :
- 4
- Filter Feature :
- No
- Plating Thickness :
- 760 nm
- Mixed Contacts :
- No
- Operating Supply Voltage :
- 250V
- Contact Retention :
- With
- Contact Type :
- Female Socket
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- ELV :
- Compliant
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Circuit Application :
- Signal
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Series :
- MTA-100
- Pitch :
- 0.100 2.54mm
- Approval Agency :
- CSA
- Current Rating :
- 5A
- Published :
- 2008
- Insulation Diameter :
- 1.52 mm
- Housing Material :
- Nylon
- Voltage - Rated :
- 250V
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Color :
- Red
- Factory Lead Time :
- 19 Weeks
- Flammability Rating :
- UL94 V-2
- Mating Alignment :
- Without
- Wire/Cable Type :
- Discrete
- Fastening Type :
- Locking Ramp
- Number of Rows :
- 1
- Packaging :
- Bulk
- Contact Gender :
- FEMALE
- Contact Finish :
- Gold
- DIN Conformance :
- No
- Option :
- GENERAL PURPOSE
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Red, White
- Contact Material :
- COPPER ALLOY
- Datasheets
- 3-641237-4
