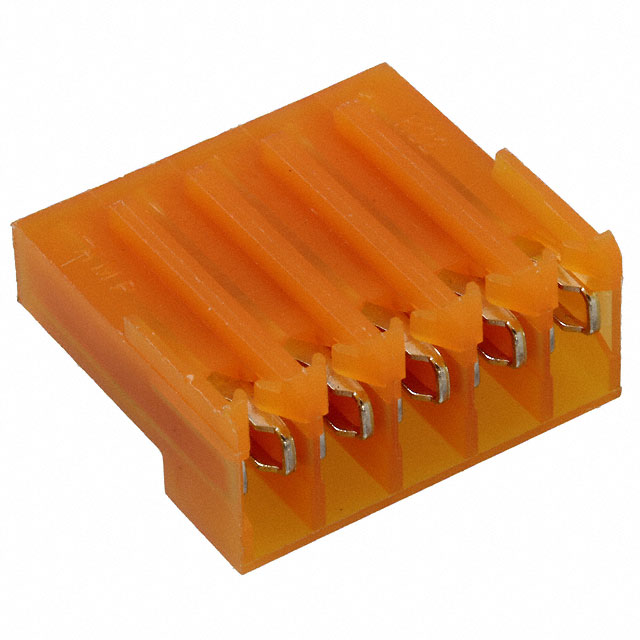

3-641222-5
Or copy the link below:
- Mfr.Part #
- 3-641222-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 5POS IDC 18AWG GOLD
- Stock
- 46,111
- In Stock ：
- 46,111
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Wire Gauge :
- 18 AWG
- ELV :
- Compliant
- Sealable :
- No
- Insulation Diameter :
- 2.41 mm
- Contact Gender :
- FEMALE
- Wire/Cable Gauge :
- 18 AWG
- Number of Rows :
- 1
- Approval Agency :
- CSA
- Housing Material :
- Nylon
- RoHS Status :
- RoHS Compliant
- Contact Retention :
- With
- Connector Type :
- Receptacle
- Wire/Cable Type :
- Discrete
- Contact Current Rating :
- 7A
- Number of Positions :
- 5
- Shrouding :
- No
- Min Operating Temperature :
- -67°C
- Width :
- 9.017mm
- Contact Plating :
- Tin, Gold
- Operating Supply Voltage :
- 600V
- Pitch :
- 0.156 3.96mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Free Hanging (In-Line)
- Contact Finish :
- Gold
- Max Operating Temperature :
- 221°C
- Factory Lead Time :
- 27 Weeks
- Radiation Hardening :
- No
- Cable Termination :
- IDC
- Circuit Application :
- Power
- Published :
- 2008
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Flammability Rating :
- UL94 V-2
- Mating Retention :
- Without
- Height :
- 9.02mm
- Contact Type :
- Female Socket
- Plating Thickness :
- 1.77μm
- Voltage - Rated AC :
- 600V
- Feature :
- Closed End
- Color :
- Orange
- Housing Color :
- Orange, White
- Voltage - Rated :
- 600V
- Lead Free :
- Not Applicable
- Number of Contacts :
- 5
- Packaging :
- Bulk
- Underplate Material :
- Nickel
- Mating Alignment :
- Without
- Current Rating :
- 7A
- Termination :
- IDC
- Gender :
- Receptacle
- Mount :
- Free Hanging
- Wire Type :
- Discrete or Ribbon Cable
- Length :
- 19.812mm
- Series :
- MTA-156
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Datasheets
- 3-641222-5
