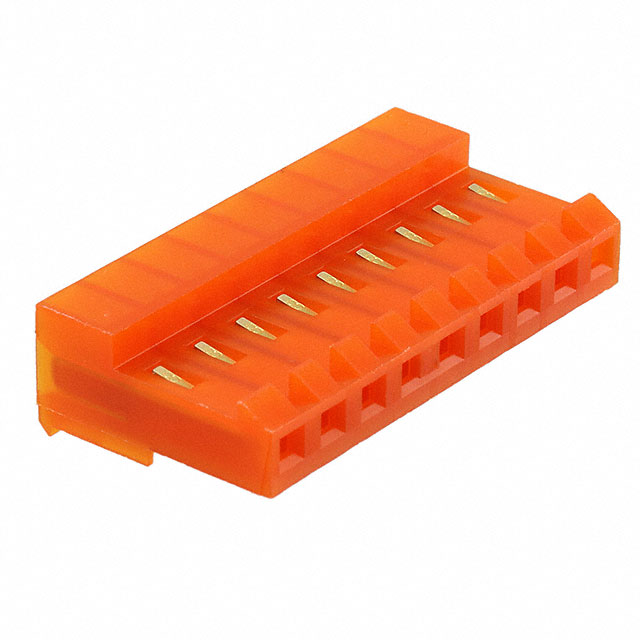

3-641217-9
Or copy the link below:
- Mfr.Part #
- 3-641217-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 9POS IDC 18AWG GOLD
- Stock
- 18,115
- In Stock ：
- 18,115
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Factory Lead Time :
- 17 Weeks
- Contact Finish :
- Gold
- Polarization Key :
- POLARIZED HOUSING
- Option :
- GENERAL PURPOSE
- Wire/Cable Gauge :
- 18 AWG
- Lead Free :
- Not Applicable
- Contact Plating :
- Tin, Gold
- Feature :
- Closed End
- RoHS Status :
- RoHS Compliant
- Rated Current (Signal) :
- 7A
- ELV :
- Compliant
- Insulation Diameter :
- 2.413 mm
- Contact Material :
- COPPER ALLOY
- Wire Type :
- Discrete or Ribbon Cable
- Housing Material :
- Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Free Hanging
- Connector Type :
- Receptacle
- Packaging :
- Bulk
- Wire/Cable Type :
- Discrete
- Reliability :
- COMMERCIAL
- Number of Rows :
- 1
- Contact Type :
- Female Socket
- Current Rating :
- 7A
- Pbfree Code :
- yes
- Dielectric Withstanding Voltage :
- 750VAC V
- Approval Agency :
- CSA
- Mounting Type :
- Free Hanging (In-Line)
- Length :
- 35.6616mm
- Underplate Material :
- Nickel
- Sealable :
- No
- Plating Thickness :
- 5.08μm
- Total Number of Contacts :
- 9
- Body Depth :
- 0.725 inch
- Termination Type :
- IDC
- DIN Conformance :
- No
- Body Breadth :
- 0.355 inch
- Number of Power Positions :
- 9
- Fastening Type :
- Locking Ramp
- Height :
- 9.02mm
- Contact Current Rating :
- 7A
- Filter Feature :
- No
- Contact Retention :
- With
- MIL Conformance :
- No
- Voltage - Rated AC :
- 600V
- Wire Gauge :
- 18 AWG
- Pitch :
- 0.156 3.96mm
- Durability :
- 25 Cycles
- Color :
- Orange
- Operating Supply Voltage :
- 600V
- JESD-609 Code :
- e3
- Max Operating Temperature :
- 221°C
- Published :
- 2008
- Series :
- MTA-156
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Mixed Contacts :
- No
- IEC Conformance :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Min Operating Temperature :
- -67°C
- Contact Gender :
- FEMALE
- Flammability Rating :
- UL94 V-2
- Cable Termination :
- IDC
- Datasheets
- 3-641217-9
3-641217-9 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
