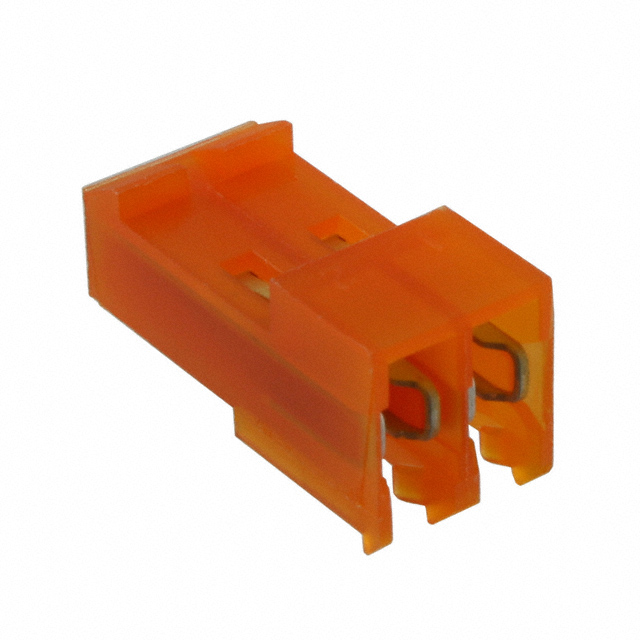

3-641217-2
Or copy the link below:
- Mfr.Part #
- 3-641217-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 2POS IDC 18AWG GOLD
- Stock
- 1,206
- In Stock ：
- 1,206
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Insulation Diameter :
- 2.413 mm
- Mixed Contacts :
- No
- Factory Lead Time :
- 17 Weeks
- Wire Gauge :
- 18 AWG
- Plating Thickness :
- 5.08μm
- Pbfree Code :
- yes
- ECCN Code :
- EAR99
- Height :
- 9.02mm
- ELV :
- Compliant
- Operating Supply Voltage :
- 600V
- Mounting Type :
- Free Hanging (In-Line)
- Orientation :
- RIGHT ANGLE
- DIN Conformance :
- No
- Connector Type :
- Receptacle
- Total Number of Contacts :
- 2
- Cable Termination :
- IDC
- Packaging :
- Bulk
- Body Breadth :
- 0.355 inch
- Published :
- 2010
- Termination Type :
- IDC
- Sealable :
- No
- MIL Conformance :
- No
- Contact Current Rating :
- 7A
- Feature :
- Closed End
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Finish :
- Gold
- IEC Conformance :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Fastening Type :
- Locking Ramp
- Flammability Rating :
- UL94 V-2
- Dielectric Withstanding Voltage :
- 750VAC V
- Contact Gender :
- FEMALE
- Rated Current (Signal) :
- 7A
- Contact Plating :
- Tin, Gold
- Approval Agency :
- CSA
- Polarization Key :
- POLARIZED HOUSING
- Number of Rows :
- 1
- Filter Feature :
- No
- Pitch :
- 0.156 3.96mm
- Contact Type :
- Female Socket
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire/Cable Type :
- Discrete
- Underplate Material :
- Nickel
- Housing Material :
- Nylon
- Max Voltage Rating (AC) :
- 600V
- Number of Power Positions :
- 2
- RoHS Status :
- RoHS Compliant
- Color :
- Orange
- Series :
- MTA-156
- Mount :
- Free Hanging
- Wire Type :
- Discrete or Ribbon Cable
- Length :
- 7.9248mm
- Contact Retention :
- With
- Reliability :
- COMMERCIAL
- Max Operating Temperature :
- 221°C
- Contact Resistance :
- 3mOhm
- Lead Free :
- Not Applicable
- Insertion Force-Max :
- 8.896 N
- Option :
- GENERAL PURPOSE
- Wire/Cable Gauge :
- 18 AWG
- HTS Code :
- 8536.69.40.40
- Current Rating :
- 7A
- Depth :
- 9.02mm
- Voltage - Rated AC :
- 600V
- Min Operating Temperature :
- -67°C
- Datasheets
- 3-641217-2
