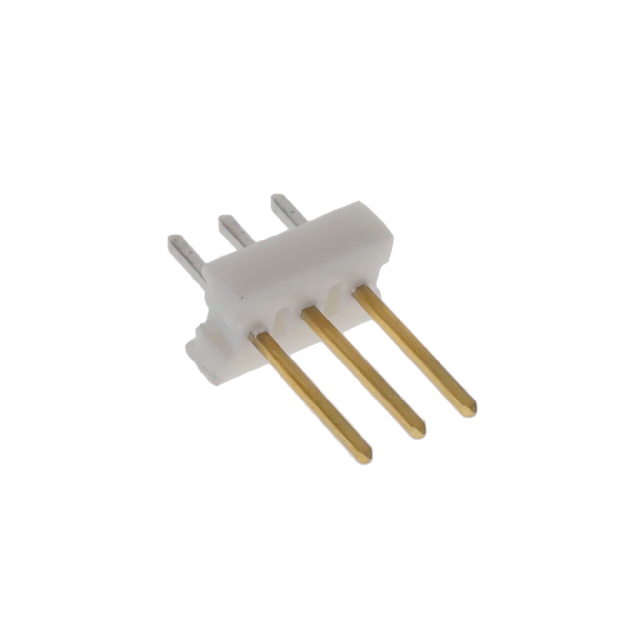

3-641211-3
Or copy the link below:
- Mfr.Part #
- 3-641211-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.54MM
- Stock
- 143
- In Stock ：
- 143
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- Housing Color :
- Natural, White
- Color :
- Natural
- Pitch - Mating :
- 0.100 2.54mm
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Underplate Material :
- Nickel
- Contact Current Rating :
- 5A
- Pitch :
- 2.54mm
- Sealable :
- No
- Flammability Rating :
- UL94 V-0
- Lead Length :
- 3.56mm
- Plating :
- Gold
- Contact Type :
- Male Pin
- Packaging :
- Bulk
- Factory Lead Time :
- 14 Weeks
- Voltage - Rated :
- 250VAC
- Max Operating Temperature :
- 221°C
- Max Voltage Rating (AC) :
- 250V
- PCB Mount Retention :
- Without
- Insulation Height :
- 0.100 2.54mm
- Plating Thickness :
- 380 nm
- Housing Material :
- Polyester
- Number of Contacts :
- 3
- Number of Positions :
- 3
- Series :
- MTA-100
- Voltage - Rated AC :
- 250V
- Applications :
- GENERAL PURPOSE
- Material Flammability Rating :
- UL94 V-0
- Height :
- 2.54mm
- Operating Temperature :
- -55°C~105°C
- Insulation Material :
- Thermoplastic
- Contact Length - Mating :
- 0.295 7.49mm
- Overall Contact Length :
- 0.535 13.59mm
- Contact Finish - Mating :
- Gold
- PCB Mount Alignment :
- Without
- Radiation Hardening :
- No
- Contact Gender :
- Male
- Mounting Type :
- Through Hole
- Approval Agency :
- CSA
- ELV :
- Compliant
- PCB Thickness :
- 1.6002mm
- Operating Supply Voltage :
- 250V
- Mount :
- Through Hole
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 1
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Material :
- COPPER ALLOY
- Contact Plating :
- Tin, Gold
- Circuit Application :
- Signal
- Length :
- 7.62mm
- Shrouding :
- Unshrouded
- PCB Mounting Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Shape :
- Square
- Contact Length - Post :
- 0.140 3.56mm
- Contact Resistance :
- 6mOhm
- Mating Post Length :
- 7.49mm
- Current Rating :
- 5A
- Insulation Color :
- Natural
- Depth :
- 5.08mm
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Length - Tail :
- 3.56mm
- Published :
- 2012
- Contact Style :
- Straight
- Mating Retention :
- Without
- Orientation :
- Vertical
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Min Operating Temperature :
- -67°C
- Datasheets
- 3-641211-3
MTA-100 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Thermoplastic 3-Position Board to Cable/Wire 0.100 2.54mm Height
3-641211-3 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the MTA-100 Series, it can be found in this category.Temperatures below 221°C are best for using it.There's a minimum temperature of -67°C for this device.A possible application of the device would be General Purpose.In this case, Through Hole mounts the part.The memory's operating supply voltage is 250V.The device is operating at -55°C~105°C Operating Temperature.
3-641211-3 Features
MTA-100 series
3-641211-3 Applications
There are a lot of TE Connectivity AMP Connectors
3-641211-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
