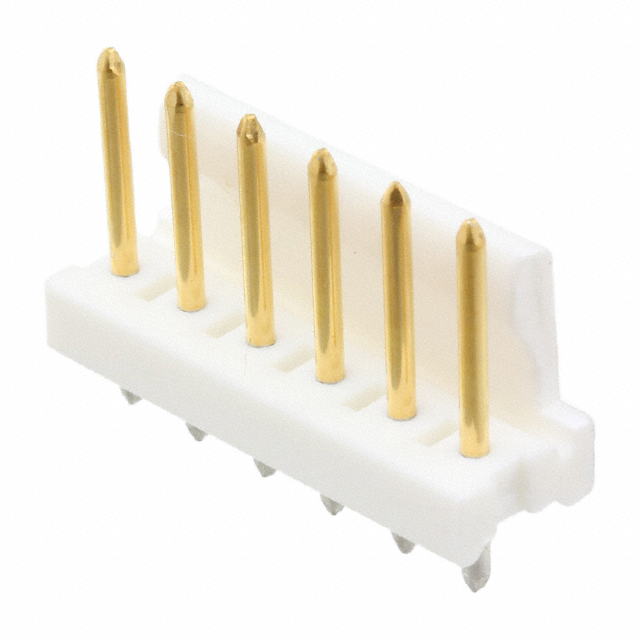

3-641209-6
Or copy the link below:
- Mfr.Part #
- 3-641209-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 3.96MM
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Gender :
- Male
- Pitch - Mating :
- 0.156 3.96mm
- ELV :
- Compliant
- Operating Temperature :
- -55°C~105°C
- Number of Power Positions :
- 6
- Orientation :
- Vertical
- Circuit Application :
- Power
- Max Operating Temperature :
- 221°C
- Contact Plating :
- Tin, Gold
- Color :
- Natural
- Housing Material :
- Polyester
- RoHS Status :
- RoHS Compliant
- PCB Thickness :
- 1.57mm
- Number of Rows :
- 1
- Radiation Hardening :
- No
- Contact Resistance :
- 3mOhm
- Contact Material :
- COPPER ALLOY
- Style :
- Board to Cable/Wire
- Max Voltage Rating (AC) :
- 600V
- Shrouding :
- Shrouded - 1 Wall
- Approval Agency :
- CSA
- Underplate Material :
- Nickel
- Mount :
- Through Hole
- Height :
- 10.795mm
- Length :
- 23.77mm
- Contact Length - Post :
- 0.125 3.18mm
- Sealable :
- No
- Applications :
- General Purpose, Industrial
- PCB Mounting Orientation :
- Vertical
- Operating Supply Voltage :
- 600V
- Housing Color :
- Natural
- Connector Type :
- Header
- Published :
- 2008
- Fastening Type :
- Friction Lock
- Insulation Material :
- Thermoplastic, Glass Filled
- Overall Contact Length :
- 0.650 16.51mm
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Current Rating :
- 7A
- Contact Type :
- Male Pin
- Min Operating Temperature :
- -67°C
- Contact Finish - Mating :
- Gold
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- Pitch :
- 3.9624mm
- Number of Contacts :
- 6
- Mating Post Length :
- 10.16mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Length :
- 3.18mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Insulation Height :
- 0.425 10.80mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Plating Thickness :
- 2.54μm
- Contact Current Rating :
- 7A
- Packaging :
- Bulk
- Number of Positions :
- 6
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Lead Free :
- Lead Free
- Depth :
- 7.67mm
- Contact Length - Mating :
- 0.400 10.16mm
- Contact Shape :
- Circular
- Insulation Color :
- Natural
- Contact Retention :
- Without
- Series :
- MTA-156
- Factory Lead Time :
- 17 Weeks
- Voltage - Rated AC :
- 600V
- Voltage - Rated :
- 600VAC
- Datasheets
- 3-641209-6
MTA-156 Series 1-Row Header Solder Copper Alloy Bulk Through Hole Gold Thermoplastic, Glass Filled 6-Position Board to Cable/Wire 0.425 10.80mm Height
3-641209-6 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the MTA-156 Series.When the temperature is below 221°C, it is best to use it.A minimum operating temperature of -67°C is required for this device.The device could be used for the following application: General Purpose, Industrial.Part Through Hole is mounted to the part.600V is the operating supply voltage for this memory.As a result, the device runs at -55°C~105°C Operating Temperature.
3-641209-6 Features
MTA-156 series
3-641209-6 Applications
There are a lot of TE Connectivity AMP Connectors
3-641209-6 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
