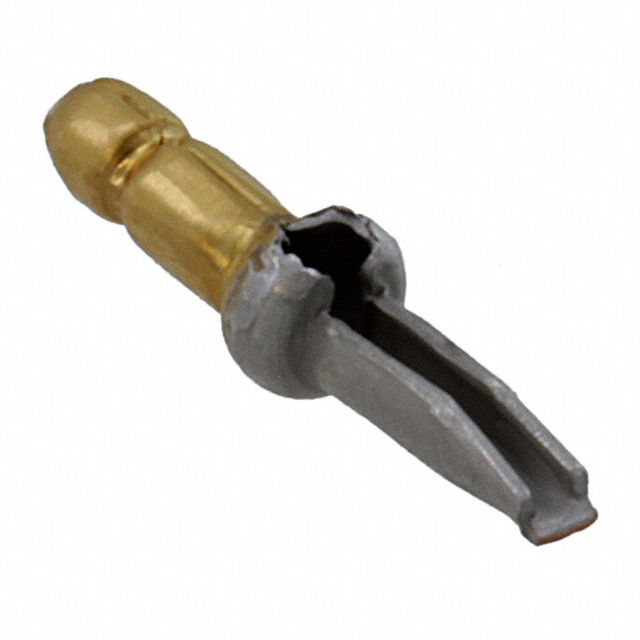

3-61067-1
Or copy the link below:
- Mfr.Part #
- 3-61067-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC 0.058DIA GOLD
- Stock
- 3,317
- In Stock ：
- 3,317
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- PC Pin, Single Post Connectors
- Underplate Material :
- Nickel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Gender :
- Male
- Insulation :
- Non-Insulated
- Connector Type :
- Connector, Power
- Connector Support Type :
- CONNECTOR ACCESSORY
- Length - Below Flange :
- 0.150 3.81mm
- Depth :
- 2.16mm
- Length :
- 10.16mm
- Min Operating Temperature :
- -55°C
- Termination :
- Press-Fit
- Flange Diameter :
- 0.085 (2.16mm)
- Contact Finish :
- Gold
- PCB Thickness :
- 2.39mm
- Packaging :
- Bulk
- Contact Mating Length :
- 4.064mm
- Mounting Hole Diameter :
- 0.046 ~ 0.050 (1.17mm ~ 1.27mm)
- Current Rating :
- 6A
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Pin Size - Above Flange :
- 0.058 1.47mm Dia
- Plating Thickness :
- 76μm
- Max Operating Temperature :
- 105°C
- Terminal Type :
- Single Post
- Shielding :
- Unshielded
- Factory Lead Time :
- 12 Weeks
- Terminal Style :
- Flanged
- Published :
- 2007
- Material :
- Bronze
- Board Thickness :
- 0.062 ~ 0.094 1.57mm ~ 2.39mm
- Hole Diameter :
- 1.27 mm
- Height :
- 2.16mm
- Mounting Type :
- Through Hole
- Orientation :
- Straight
- Length - Above Flange :
- 0.160 4.06mm
- Contact Plating :
- Tin
- Length - Overall :
- 0.380 9.65mm
- Insulated Wire Support :
- No
- Mount :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Phosphor Bronze
- Datasheets
- 3-61067-1
