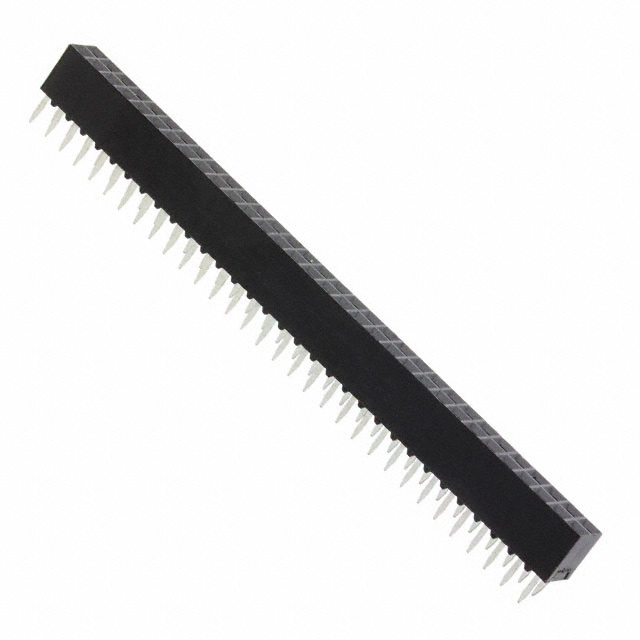

3-535542-2
Or copy the link below:
- Mfr.Part #
- 3-535542-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 64POS 0.1 GOLD PCB
- Stock
- 17,359
- In Stock ：
- 17,359
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- MIL Conformance :
- No
- Number of Positions :
- 64
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Stackable :
- yes
- Plating Thickness :
- 1.27μm
- Style :
- Board to Board or Cable
- Lead Length :
- 3.302mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Option :
- GENERAL PURPOSE
- Lead Free :
- Contains Lead
- Housing Material :
- Polyester
- Sealable :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Resistance :
- 5GOhm
- Height :
- 5.03mm
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Operating Supply Voltage :
- 333V
- RoHS Status :
- Non-RoHS Compliant
- Operating Temperature :
- -65°C~125°C
- Number of Rows :
- 2
- Pitch - Mating :
- 0.100 2.54mm
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Series :
- AMPMODU Mod IV
- Published :
- 2011
- Housing Color :
- Black
- Factory Lead Time :
- 14 Weeks
- Approval Agency :
- CSA
- Contact Resistance :
- 12mOhm
- ELV :
- Non-Compliant
- UL Flammability Code :
- 94V-0
- Filter Feature :
- No
- Termination :
- Solder
- Length - Tail :
- 3.18mm
- Mount :
- Through Hole
- Fastening Type :
- Push-Pull
- Pbfree Code :
- No
- Contact Current Rating :
- 3A
- Contact Material :
- Phosphor Bronze
- Packaging :
- Tube
- Insulation Height :
- 0.265 6.73mm
- DIN Conformance :
- No
- PCB Thickness :
- 1.57mm
- Orientation :
- Vertical
- Row Spacing - Mating :
- 0.100 (2.54mm)
- PCB Mount Retention :
- Without
- Contact Length - Post :
- 0.130 3.30mm
- Connector Type :
- Receptacle, Bottom or Top Entry
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Current Rating :
- 2A
- Mixed Contacts :
- No
- Contact Finish - Post :
- Tin-Lead
- Contact Type :
- Female Socket
- Additional Feature :
- LOW PROFILE, TOP ENTRY
- IEC Conformance :
- No
- JESD-609 Code :
- e0
- Insulation Material :
- Polyester, Glass Filled
- Contact Finish - Mating :
- Gold
- Datasheets
- 3-535542-2
2 Rows Receptacle, Bottom or Top Entry Solder Phosphor Bronze Through Hole Tube Gold Polyester, Glass Filled 64 Positions Female Socket
3-535542-2 Overview
It comes in Receptacle, Bottom or Top Entry packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the AMPMODU Mod IV Series of products.In addition, there are other features such as LOW PROFILE, TOP ENTRY, to mention only a few.The part is mounted by Through Hole.This memory's operating supply voltage is 333V.The device runs in -65°C~125°C Operating Temperature.
3-535542-2 Features
AMPMODU Mod IV series
3-535542-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-535542-2 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
