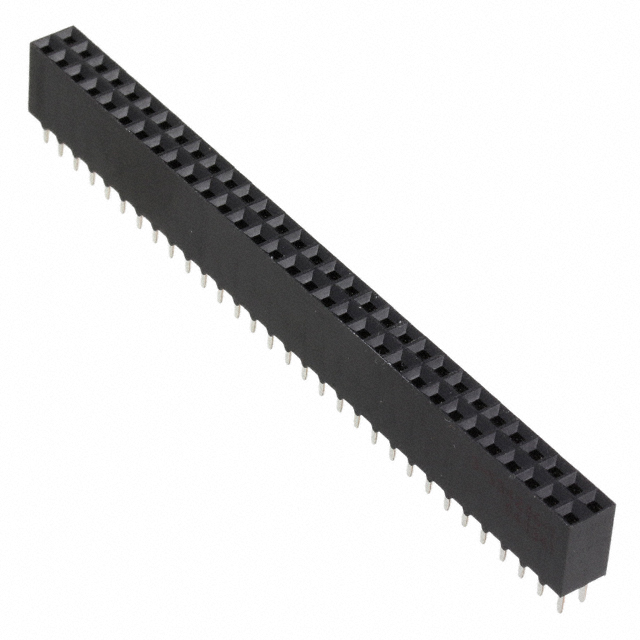

3-534206-1
Or copy the link below:
- Mfr.Part #
- 3-534206-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 62POS 0.1 GOLD PCB
- Stock
- 334
- In Stock ：
- 334
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Resistance :
- 5GOhm
- Mount :
- Through Hole
- PCB Thickness :
- 1.57mm
- Contact Finish - Mating :
- Gold
- Max Operating Temperature :
- 105°C
- Plating :
- Gold
- Contact Finish - Post :
- Tin-Lead
- PCB Mount Retention :
- Without
- Height :
- 5.03mm
- Color :
- Black
- ELV :
- Non-Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Current Rating :
- 2A
- Operating Temperature :
- -65°C~125°C
- Length - Tail :
- 2.92mm
- PCB Mounting Orientation :
- Vertical
- Orientation :
- Vertical
- Pitch :
- 2.54mm
- Fastening Type :
- Push-Pull
- Contact Current Rating :
- 2A
- Packaging :
- Tube
- Housing Material :
- Polyester
- Insulation Color :
- Black
- Mounting Type :
- Through Hole
- Contact Resistance :
- 12mOhm
- Radiation Hardening :
- No
- RoHS Status :
- Non-RoHS Compliant
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Positions Loaded :
- All
- Contact Length - Post :
- 0.115 2.92mm
- Pitch - Mating :
- 0.100 2.54mm
- Current Rating (Amps) :
- 2A
- Contact Material :
- Phosphor Bronze
- Stackable :
- yes
- Housing Color :
- Black
- Lead Free :
- Contains Lead
- Contact Plating :
- Gold
- Published :
- 2009
- Number of Rows :
- 2
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Connector Type :
- Receptacle
- Operating Supply Voltage :
- 333V
- Sealable :
- No
- Factory Lead Time :
- 14 Weeks
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Length :
- 2.92mm
- Number of Contacts :
- 62
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Series :
- AMPMODU Mod II
- Termination :
- Solder
- Approval Agency :
- CSA
- Insulation Height :
- 0.320 8.13mm
- Insulation Material :
- Polyester, Glass Filled
- Contact Type :
- Female Socket
- Min Operating Temperature :
- -65°C
- Number of Positions :
- 62
- High Temperature Compatible :
- No
- Style :
- Board to Board or Cable
- Datasheets
- 3-534206-1
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyester, Glass Filled 62 Positions Female Socket
3-534206-1 Overview
Packaging is in the form of Receptacle.This device has a Through Hole mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the AMPMODU Mod II Series.If the temperature is below 105°C, it's best to use it.-65°C is the minimum temperature for this device.There is a mounting hole at Through Hole.It runs on 333V voltage.Devices operate at -65°C~125°C operating temperatures.
3-534206-1 Features
AMPMODU Mod II series
3-534206-1 Applications
There are a lot of TE Connectivity AMP Connectors
3-534206-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
