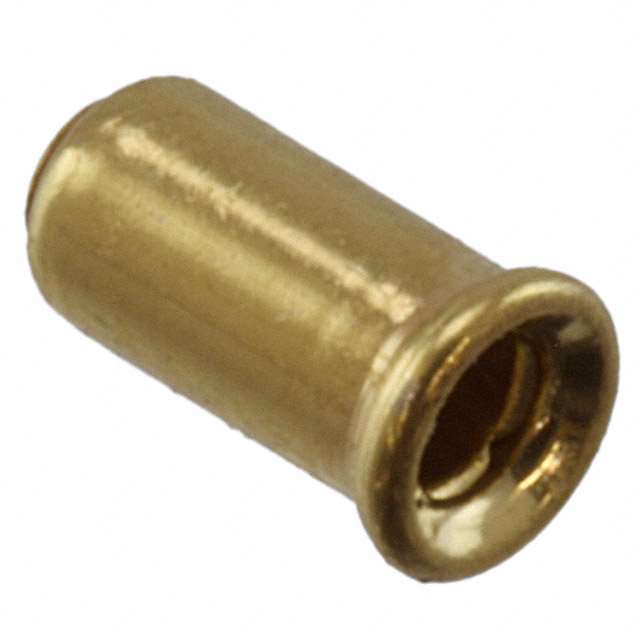

3-5332070-5
Or copy the link below:
- Mfr.Part #
- 3-5332070-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN RCPT .037-.040 SOLDER
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Connector Type :
- Socket
- Contact Material :
- BERYLLIUM COPPER
- Depth :
- 2.26mm
- RoHS Status :
- RoHS Compliant
- Series :
- 4
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Orientation :
- Straight
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- DIN Conformance :
- No
- Flange Diameter :
- 0.089 (2.26mm)
- PCB Thickness :
- 3.18mm
- Max Current Rating :
- 7.5A
- Termination :
- Solder
- Diameter - Inside :
- 1.02 mm
- MIL Conformance :
- No
- Contact Finish :
- Gold
- Feature :
- Knockout Bottom
- Contact Gender :
- FEMALE
- Packaging :
- Bulk
- Accepts Pin Diameter :
- 0.037 ~ 0.040 (0.94mm ~ 1.02mm)
- Factory Lead Time :
- 19 Weeks
- Published :
- 2010
- Connector Support Type :
- CONNECTOR ACCESSORY
- Operating Temperature :
- -65°C~126°C
- Hole Diameter :
- 1.83 mm
- Number of Contacts :
- 1
- ECCN Code :
- EAR99
- Wire/Cable Type :
- Discrete
- Mounting Hole Diameter :
- 0.072 (1.83mm)
- Tail Type :
- No Tail
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Current Rating :
- 7.5A
- Assembly Item Name :
- Contact
- Sealable :
- No
- Length :
- 3.6322mm
- Mount :
- Surface Mount
- ELV :
- Compliant
- Socket Depth :
- 0.130 3.30mm
- Plating Thickness :
- 30μm
- Circuit Application :
- Power
- Length - Overall :
- 0.143 3.63mm
- Lead Free :
- Lead Free
- IEC Conformance :
- No
- Datasheets
- 3-5332070-5
3-5332070-5 datasheet pdf and Terminals - PC Pin Receptacles, Socket Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
