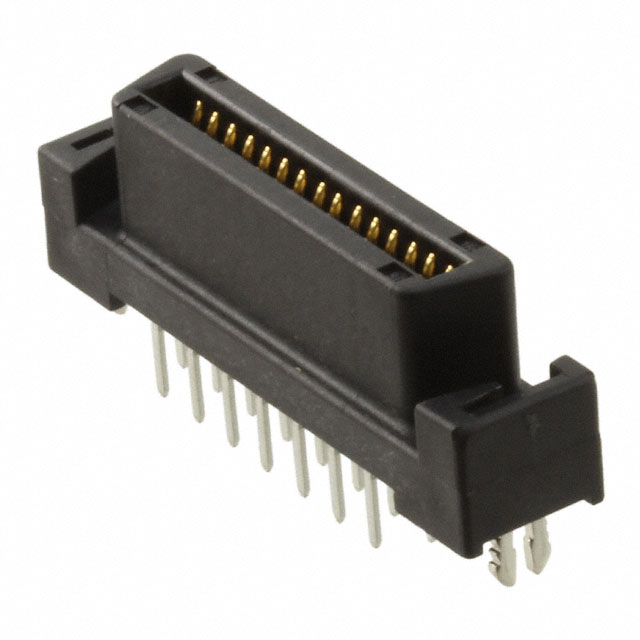

3-5175475-3
Or copy the link below:
- Mfr.Part #
- 3-5175475-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN BTB HD RCPT 30P VERT SOLDER
- Stock
- 1,761
- In Stock ：
- 1,761
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Centronics Connectors
- Type :
- Board to Board, High Density
- Lead Length :
- 3.1mm
- Pitch :
- 1.27mm
- Flammability Rating :
- UL94 V-0
- Length :
- 30.4mm
- Connector Style :
- Outer Shroud Contacts
- Insulation Resistance :
- 1MOhm
- Number of Rows :
- 2
- Termination :
- Solder
- Pbfree Code :
- yes
- Plating Thickness :
- 1μm
- MIL Conformance :
- No
- Circuit Application :
- Signal
- Published :
- 2004
- Series :
- CHAMP .050 I
- Feature :
- Board Lock
- Contact Shape :
- Square
- IEC Conformance :
- No
- Total Number of Contacts :
- 30
- Contact Material :
- Bronze
- RoHS Status :
- RoHS Compliant
- Number of Ports :
- 1
- PCB Thickness :
- 12.7mm
- Option :
- GENERAL PURPOSE
- Gender :
- FEMALE
- Operating Supply Voltage :
- 250V
- Contact Finish :
- Gold
- Filter Feature :
- No
- Mating Alignment :
- With
- Empty Shell :
- No
- DIN Conformance :
- No
- Number of Positions :
- 30
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 1A
- Height :
- 7mm
- Orientation :
- Vertical
- Min Operating Temperature :
- -67°C
- Length - Tail :
- 3.1242mm
- Shell Material :
- GLASS FILLED POLYAMIDE66
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- PCB Mount Alignment :
- Without
- Contact Finish Thickness :
- 20.0μin 0.51μm
- Factory Lead Time :
- 23 Weeks
- Connector Type :
- Receptacle
- Mixed Contacts :
- No
- Depth :
- 7mm
- Contact Plating :
- Gold, Tin
- Housing Material :
- Nylon
- Mounting Type :
- Through Hole
- ELV :
- Compliant
- Color :
- Black
- Sealable :
- No
- UL Flammability Code :
- 94V-0
- Max Operating Temperature :
- 185°C
- Contact Finish Thickness - Mating :
- 500 nm
- Datasheets
- 3-5175475-3
