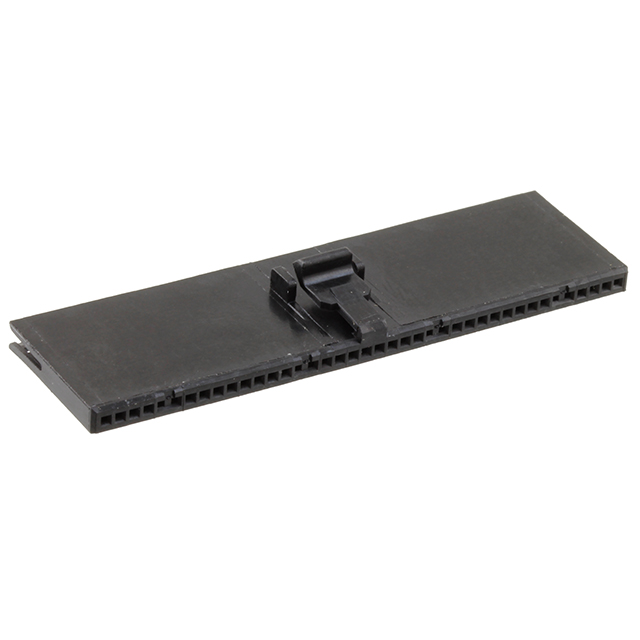

3-487545-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Housings

Gender :

Receptacle

Durability :

200 Cycles

Orientation :

Straight

Note :

Contacts Not Included

Contact Pattern :

RECTANGULAR

Factory Lead Time :

9 Weeks

Housing Material :

Polyester

Pbfree Code :

yes

ECCN Code :

EAR99

Filter Feature :

No

FFC, FCB Thickness :

0.05-0.08mm

MIL Conformance :

No

Length :

51.89mm

Insertion Force-Max :

2.224 N

Number of Rows :

1

Lead Free :

Lead Free

Operating Temperature :

-55°C~105°C

Housing Color :

Black

Wire/Cable Type :

Flat Flex

Sealable :

No

Material Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Number of Positions :

40

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Flammability Rating :

UL94 V-0

Withdrawl Force-Min :

.278 N

Pitch :

0.050 1.27mm

Total Number of Contacts :

40

Flat Flex Type :

FFC

Dielectric Withstanding Voltage :

300VAC V

Body Breadth :

0.275 inch

IEC Conformance :

No

Reliability :

COMMERCIAL

Circuit Application :

Signal

ELV :

Compliant

Option :

GENERAL PURPOSE

Mount :

Free Hanging

Insulation Resistance :

5GOhm

Current Rating :

1.5A

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

14.85mm

Packaging :

Bulk

Series :

AMPMODU System 50

DIN Conformance :

No

Mating Alignment :

With

Connector Type :

Housing for Female Contacts

Lead Pitch :

1.27mm

Mixed Contacts :

No

Operating Supply Voltage :

100V

Locking Feature :

Latch Lock

Published :

2008

Contact Style :

SQ PIN-SKT
