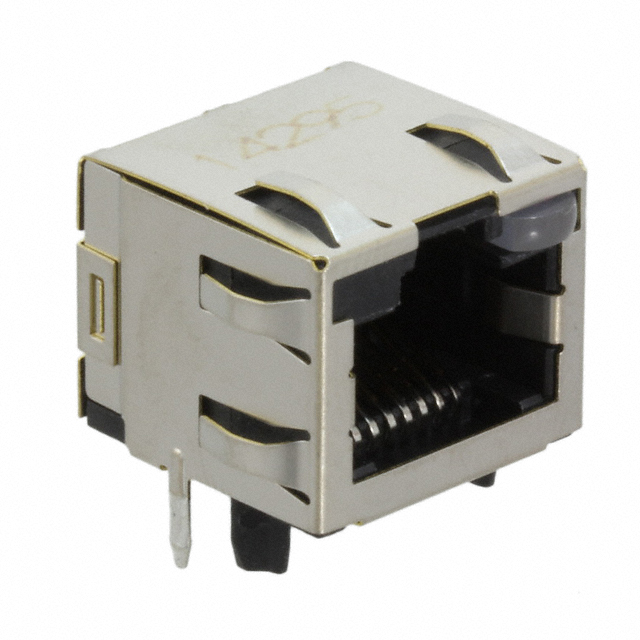

3-406549-3
Or copy the link below:
- Mfr.Part #
- 3-406549-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A SHIELDED
- Stock
- 14,579
- In Stock ：
- 14,579
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- Orientation :
- RIGHT ANGLE
- Current Rating :
- 200mA
- Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Finish Thickness - Mating :
- 1.27μm
- ELV :
- Compliant
- Number of Contacts :
- 8
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- Length - Tail :
- 2.54mm
- PCB Thickness :
- 1.57mm
- Number of Positions Loaded :
- 8
- Contact Material :
- Bronze
- Housing Color :
- Black
- Color :
- Black
- Contact Plating :
- Gold
- Mount :
- Panel
- Element Configuration :
- Single
- Keyed :
- No
- Height :
- 13.35mm
- Plating Thickness :
- 1.27μm
- Number of Positions :
- 8
- Shielding :
- Shielded
- Circuit Application :
- Signal
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Thermoplastic
- Datasheets
- 3-406549-3
Shielded Right Angle Solder
3-406549-3 Overview
By Panel, the part is mounted.
3-406549-3 Features
3-406549-3 Applications
There are a lot of TE Connectivity / AMP
3-406549-3 Modular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
