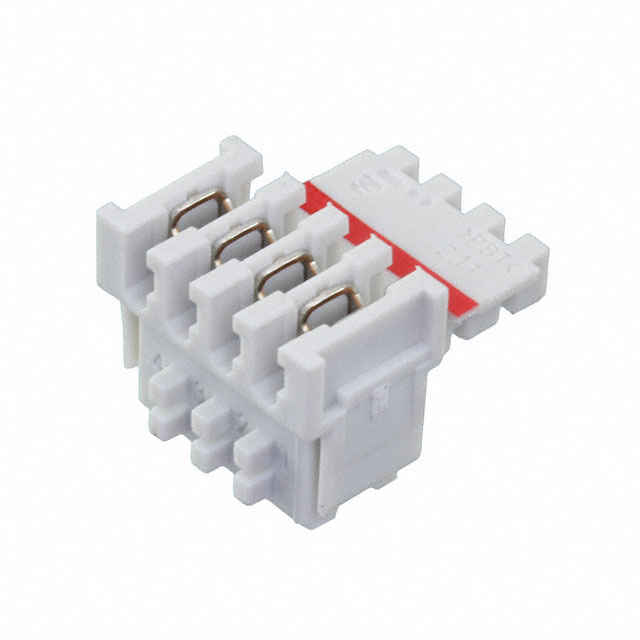

3-284865-4
Or copy the link below:
- Mfr.Part #
- 3-284865-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS IDC 22-24AWG TIN
- Stock
- 36,329
- In Stock ：
- 36,329
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Free Hanging, Panel Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Finish :
- Tin
- Operating Supply Voltage :
- 63V
- Mounting Type :
- Free Hanging (In-Line), Right Angle
- Termination :
- IDC
- Circuit Application :
- Signal
- Orientation :
- RIGHT ANGLE
- Insulation Diameter :
- 1.2954 mm
- Height :
- 7.35mm
- Fastening Type :
- Latch
- Current Rating :
- 2A
- RoHS Status :
- RoHS Compliant
- Housing Material :
- PBT
- Feature :
- Mates to PCB
- ELV :
- Compliant
- Series :
- DuoPlug
- Number of Positions :
- 4
- Packaging :
- Bulk
- Plating Thickness :
- 10μm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Preloaded :
- yes
- Wire/Cable Type :
- Discrete
- Contact Type :
- Female Blade Socket
- Max Operating Temperature :
- 110°C
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Bronze
- Cable Termination :
- IDC
- Wire Gauge :
- 22-24 AWG
- PCB Thickness :
- 1.4986mm
- Contact Plating :
- Tin
- Number of Contacts :
- 4
- Housing Color :
- Red
- Contact Current Rating :
- 2A
- Min Operating Temperature :
- -40°C
- Wire Type :
- Discrete
- Color :
- Red
- Factory Lead Time :
- 17 Weeks
- Pitch :
- 0.098 2.50mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Free Hanging
- Connector Type :
- Receptacle
- Published :
- 2014
- Number of Rows :
- 1
- Wire/Cable Diameter :
- 2.032 mm
- Datasheets
- 3-284865-4
3-284865-4 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
