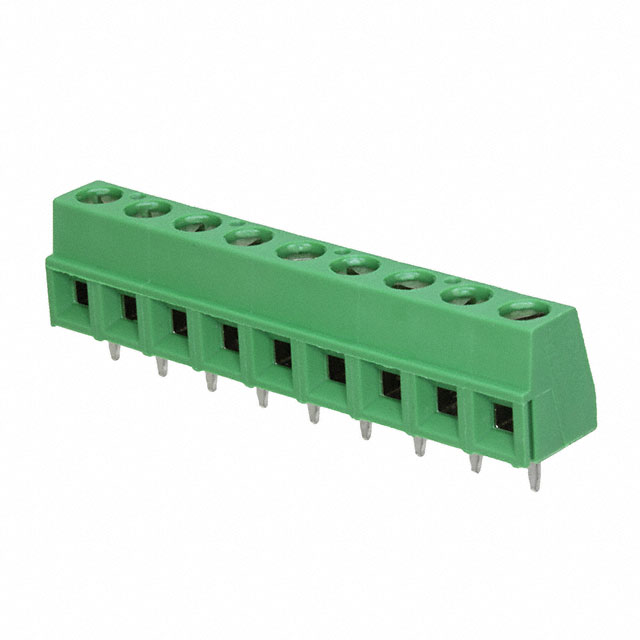

3-282837-3
Or copy the link below:
- Mfr.Part #
- 3-282837-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9P SIDE ENT 5.08MM PCB
- Stock
- 422
- In Stock ：
- 422
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Max Supply Voltage (AC) :
- 250V
- Contact Plating :
- Tin
- Packaging :
- Bulk
- ELV :
- Compliant
- Number of Levels :
- 1
- Termination :
- Solder
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Depth :
- 8.2mm
- Voltage - Rated :
- 250V
- Screw Material - Plating :
- Brass - Nickel Plated
- Published :
- 2009
- Wire Gauge (Min) :
- 16 AWG
- Number of Decks :
- 1
- Max Current Rating :
- 13.5A
- Number of Ways :
- 9
- Orientation :
- Straight
- Number of Rows :
- 1
- Wire Gauge (Max) :
- 28 AWG
- Pitch :
- 0.200 5.08mm
- Lead Free :
- Lead Free
- Screw Thread :
- M3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Interlocking (Side), Positions Stamped
- Length - Tail :
- 3.5mm
- Number of Contacts :
- 9
- Mount :
- Through Hole
- Color :
- Green
- Current Rating :
- 13.5A
- Wire Gauge :
- 16-28 AWG
- Length :
- 46.32mm
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Clamp Material - Plating :
- Brass - Nickel Plated
- Mating Orientation :
- Horizontal with Board
- Contact Material - Plating :
- Brass - Tin Plated
- Safety Approval :
- UL
- Voltage :
- 300V
- Series :
- Buchanan
- Mounting Type :
- Through Hole
- Radiation Hardening :
- No
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 12 Weeks
- Contact Material :
- Brass
- RoHS Status :
- RoHS Compliant
- Wire Termination :
- Screw - Rising Cage Clamp
- Connector Type :
- Receptacle
- Datasheets
- 3-282837-3
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan
3-282837-3 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Buchanan Series, it belongs to the range of products of that series.A number of features make the Interlocking (Side), Positions Stamped feature more powerful.Through Hole represents the mounting point for the part.
3-282837-3 Features
Buchanan series
3-282837-3 Applications
There are a lot of TE Connectivity AMP Connectors
3-282837-3 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
