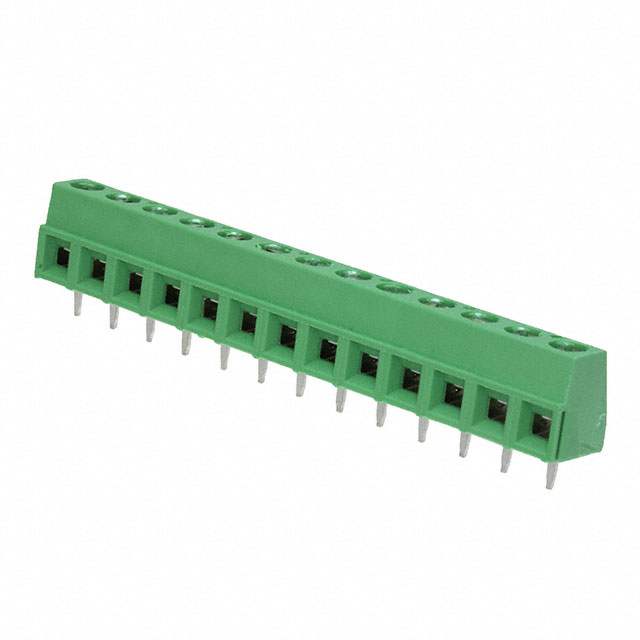

3-282837-2
Or copy the link below:
- Mfr.Part #
- 3-282837-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 13P SIDE ENT 5.08MM PCB
- Stock
- 301
- In Stock ：
- 301
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Wire to Board
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Ways :
- 13
- Color :
- Green
- Mount :
- Through Hole
- ELV :
- Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Factory Lead Time :
- 12 Weeks
- Wire Gauge :
- 16-28 AWG
- Radiation Hardening :
- No
- Series :
- Buchanan
- Depth :
- 8.2mm
- Contact Material :
- Brass
- Mating Orientation :
- Horizontal with Board
- Wire Termination :
- Screw - Rising Cage Clamp
- Safety Approval :
- UL
- Feature :
- Interlocking (Side), Positions Stamped
- Published :
- 2009
- Number of Decks :
- 1
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Number of Levels :
- 1
- Clamp Material - Plating :
- Brass - Nickel Plated
- Max Supply Voltage (AC) :
- 250V
- Packaging :
- Bulk
- Pitch :
- 0.200 5.08mm
- Length - Tail :
- 3.5mm
- Length :
- 66.64mm
- Wire Gauge (Max) :
- 28 AWG
- HTS Code :
- 8536.69.40.40
- Screw Material - Plating :
- Brass - Nickel Plated
- Lead Free :
- Lead Free
- Termination :
- Solder
- Number of Rows :
- 1
- Max Current Rating :
- 13.5A
- Number of Contacts :
- 13
- RoHS Status :
- RoHS Compliant
- ECCN Code :
- EAR99
- Torque - Screw :
- 0.68 Nm (6 Lb-In)
- Voltage - Rated :
- 300V
- Orientation :
- Straight
- Mounting Type :
- Through Hole
- Screw Thread :
- M3
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Plating :
- Tin
- Wire Gauge (Min) :
- 16 AWG
- Contact Material - Plating :
- Brass - Tin Plated
- Datasheets
- 3-282837-2
0.200 5.08mm Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 16-28 AWG Buchanan
3-282837-2 Overview
Through Hole is the mounting type of the device.We pack the product in a Bulk case.This is from the Buchanan Series.A number of advantages can be derived from its Interlocking (Side), Positions Stamped feature.This part is mounted by Through Hole.
3-282837-2 Features
Buchanan series
3-282837-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-282837-2 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
