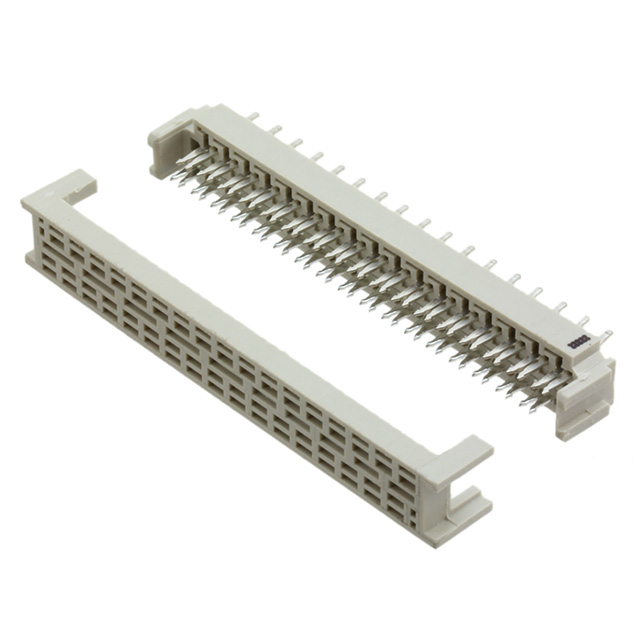

3-216791-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Board In, Direct Wire to Board

Color :

Gray

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Body/Shell Style :

PLUG

Factory Lead Time :

38 Weeks

Contact Pattern :

STAGGERED

HTS Code :

8536.69.40.40

Reliability :

COMMERCIAL

Plating Thickness :

98μin

Dielectric Withstanding Voltage :

500VAC V

Total Number of Contacts :

34

DIN Conformance :

No

Number of Conductors :

ONE

Packaging :

Bulk

Pitch :

2.54mm

Filter Feature :

No

Orientation :

Vertical

Insulation Resistance :

5000000000Ohm

Number Of PCB Rows :

2

Rated Current (Signal) :

1A

Contact Material :

Bronze

UL Flammability Code :

94V-0

Contact Style :

DUAL PRONG

Board-Side Pitch :

0.100 2.54mm

Current Rating :

1A

Cable Termination :

IDC

Operating Temperature (Max) :

105°C

Number of Positions Loaded :

All

MIL Conformance :

No

Contact Finish :

Tin

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Radiation Hardening :

No

JESD-609 Code :

e3

Series :

AMP-Latch

Pbfree Code :

yes

Connector Type :

Ribbon Cable, DIP Header

Mount :

Cable, Through Hole

ECCN Code :

EAR99

Feature :

Feed Through

PCB Contact Pattern :

RECTANGULAR

Termination :

Solder

Reference Standard :

UL

Cable Pitch :

0.050 1.27mm

Depth :

6.7mm

RoHS Status :

RoHS Compliant

Contact Resistance :

15mOhm

Mixed Contacts :

No

Housing Color :

Grey

Length :

48.26mm

Number of Positions :

34

Operating Temperature (Min) :

-65°C

Row Spacing :

0.100 (2.54mm)

Mating Connector Lock :

With

Housing Material :

Polyester

Contact Finish Thickness :

118.1μin 3.00μm

Option :

GENERAL PURPOSE

Gender :

Male

Mounting Type :

Through Hole, Press-Fit

Published :

2009

Circuit Application :

Signal

IEC Conformance :

No
