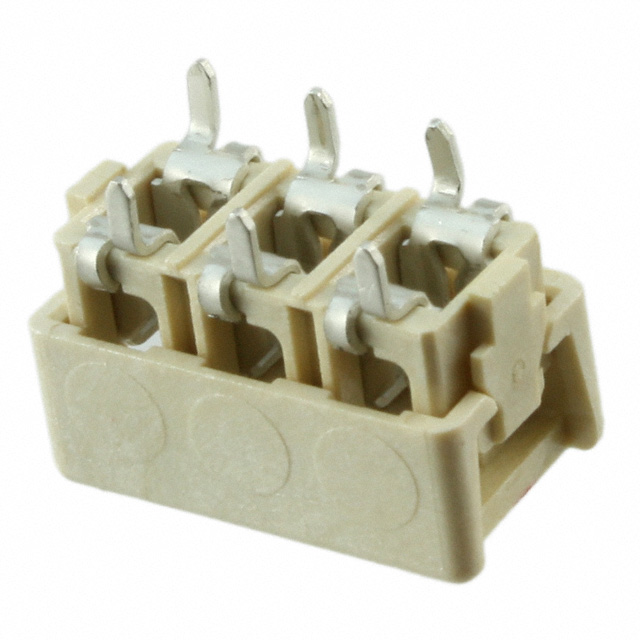

3-2106489-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Board In, Direct Wire to Board

Max Operating Temperature :

221°C

Cable Termination :

IDC

Make First / Break Last :

No

Min Operating Temperature :

-40°C

Orientation :

RIGHT ANGLE

Housing Color :

Natural

Published :

2011

Max Voltage Rating (AC) :

250V

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Sealable :

No

Termination :

IDT, Through Hole

Width :

7.747mm

Contact Finish :

Tin

Number of Rows :

1

Cable Pitch :

0.157 4.00mm

Depth :

7.75mm

Length :

13.7mm

ELV :

Compliant

Wire/Cable Type :

Discrete

Connector Type :

Individual Wires

Contact Plating :

Tin

Contact Material :

Copper

Flammability Rating :

UL94 V-0

Color :

Natural

Max Voltage Rating (DC) :

250.25kV

Insulation Diameter :

1.45 mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Circuit Application :

Power

Contact Current Rating :

6A

Plating Thickness :

5.08μm

Packaging :

Tape and Reel (TR)

Mounting Type :

Through Hole, Right Angle

Wire Gauge :

24 AWG

Keyed :

No

Board-Side Pitch :

0.157 4.00mm

Wire/Cable Gauge :

24 AWG

Number of Positions :

3

Height :

5.7912mm

Radiation Hardening :

No

RoHS Status :

RoHS Compliant

Housing Material :

Polymer

PCB Thickness :

1.5748mm

Number of Positions Loaded :

All

Pitch :

3.9878mm

Number of Contacts :

3

Gender :

Receptacle

Voltage - Rated :

250V

Approval Agency :

CSA

Current Rating :

7A

Feature :

Closed End

Mount :

Cable, Through Hole

Factory Lead Time :

9 Weeks
