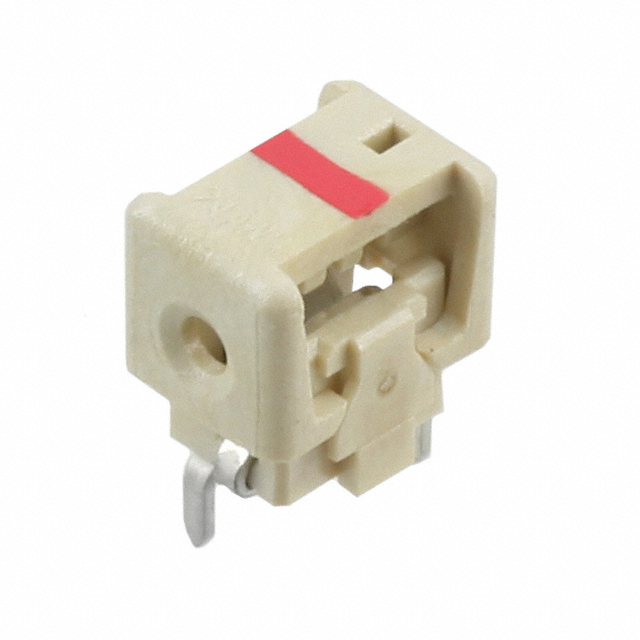

3-2106489-1
Or copy the link below:
- Mfr.Part #
- 3-2106489-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN WIRE IDC 1POS 24AWG PCB RA
- Stock
- 3,651
- In Stock ：
- 3,651
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Board In, Direct Wire to Board
- Contact Finish :
- Tin
- ELV :
- Compliant
- Flammability Rating :
- UL94 V-0
- Length :
- 5.7mm
- Mounting Type :
- Through Hole, Right Angle
- Termination :
- Through Hole
- Contact Plating :
- Tin
- Color :
- Natural
- Max Voltage Rating (AC) :
- 250V
- Make First / Break Last :
- No
- Wire/Cable Gauge :
- 24 AWG
- Width :
- 7.747mm
- Height :
- 5.7912mm
- REACH SVHC :
- Unknown
- Number of Rows :
- 1
- Orientation :
- RIGHT ANGLE
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 1
- Wire/Cable Type :
- Discrete
- Contact Material :
- Copper
- Housing Color :
- Natural
- Max Operating Temperature :
- 221°C
- Plating Thickness :
- 5.08μm
- Connector Type :
- Individual Wires
- Depth :
- 7.75mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 1
- Factory Lead Time :
- 9 Weeks
- Feature :
- Closed End
- Cable Termination :
- IDC
- Current Rating :
- 6A
- Pitch :
- 3.9878mm
- Contact Current Rating :
- 6A
- PCB Thickness :
- 1.5748mm
- Gender :
- Receptacle
- Min Operating Temperature :
- -40°C
- Published :
- 2011
- Packaging :
- Tape and Reel (TR)
- Number of Positions Loaded :
- All
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Housing Material :
- Polymer
- Wire Gauge :
- 24 AWG
- Mount :
- Through Hole
- Circuit Application :
- Power
- Insulation Diameter :
- 1.45 mm
- Radiation Hardening :
- No
- Keyed :
- No
- Sealable :
- No
- Datasheets
- 3-2106489-1
3-2106489-1 datasheet pdf and Rectangular Connectors - Board In, Direct Wire to Board product details from TE Connectivity AMP Connectors stock available at Xinshop
