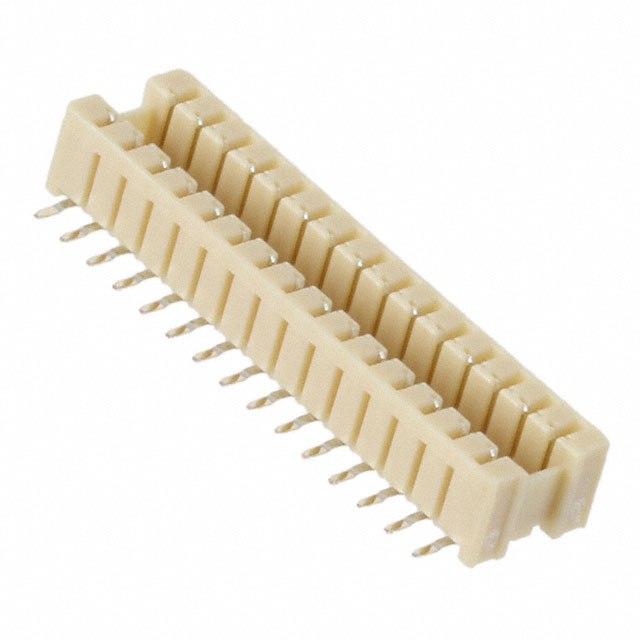

3-179437-0

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Mixed Contacts :

No

Series :

AMPMODU

Filter Feature :

No

Mating Alignment :

With

Housing Color :

White

Factory Lead Time :

17 Weeks

Min Operating Temperature :

-30°C

Max Operating Temperature :

105°C

Total Number of Contacts :

30

Feature :

Board Guide

Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED HOUSING

Reference Standard :

UL

Row Spacing :

8.4 mm

IEC Conformance :

No

Contact Shape :

RECTANGULAR

Body Breadth :

0.535 inch

Packaging :

Cut Tape (CT)

Insulation Resistance :

500000000Ohm

Number of Positions :

30

Dielectric Withstanding Voltage :

1400VAC V

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Mounting Option 1 :

LOCKING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2003

ELV :

Compliant

JESD-609 Code :

e3

Orientation :

Vertical

Operating Supply Voltage :

125V

Pitch :

0.079 2.00mm

Connector Type :

Receptacle, Outer Shroud Contacts

Contact Resistance :

70mOhm

Preloaded :

yes

Housing Material :

Nylon

Rated Current (Signal) :

1A

Mounting Type :

Surface Mount

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Pbfree Code :

yes

Height :

5.1054mm

Contact Material :

NOT SPECIFIED

RoHS Status :

RoHS Compliant

Termination :

SMD/SMT

Color :

Beige

Number Of PCB Rows :

2

Number of Conductors :

ONE

Contact Current Rating :

1A

Contact Finish :

Tin

MIL Conformance :

No

DIN Conformance :

No

Number of Rows :

2

Gender :

FEMALE
