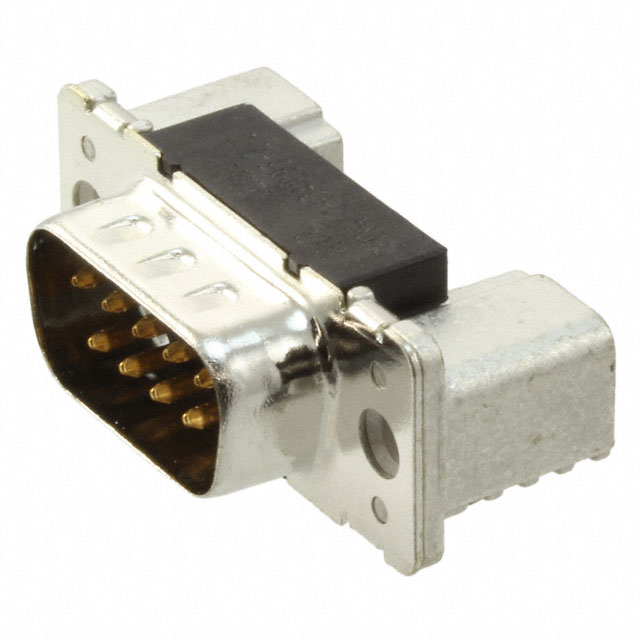

3-1740195-2
Or copy the link below:
- Mfr.Part #
- 3-1740195-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 9P SMD R/A SLDR
- Stock
- 18,597
- In Stock ：
- 18,597
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- D-Sub Connector Assemblies
- Contact Finish Thickness :
- 31.5μin 0.80μm
- Material Flammability Rating :
- UL94 V-0
- Plating :
- Steel, Tin
- Flammability Rating :
- UL94 V-0
- Number of Terminations :
- 9
- PCB Mounting Orientation :
- RIGHT ANGLE
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Series :
- AMPLIMITE HD-20
- Packaging :
- Cut Tape (CT)
- Termination :
- Solder
- Width :
- 12.5mm
- Length :
- 30.8mm
- Operating Temperature :
- -55°C~105°C
- RoHS Status :
- RoHS Compliant
- Body Material :
- Metal
- REACH SVHC :
- No SVHC
- Feature :
- Board Guide
- Connector Style :
- D-Sub
- Contact Material :
- Copper
- Voltage - Rated :
- 250V
- Number of Ports :
- 1
- Pitch :
- 2.74mm
- Contact Plating :
- Gold, Tin
- Contact Shape :
- Round
- Material :
- Steel
- Contact Finish :
- Gold
- Max Supply Voltage (AC) :
- 250V
- Housing Material :
- Polychlorinated
- Mating Connector Lock :
- With
- Color :
- Black
- Row Spacing :
- 2.8448 mm
- Connector Type :
- Plug, Male Pins
- Gender :
- Male
- Number of Rows :
- 2
- Shell Size, Connector Layout :
- 1 DE E
- Published :
- 2004
- Dielectric Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- Orientation :
- RIGHT ANGLE
- Mount :
- Surface Mount
- Factory Lead Time :
- 15 Weeks
- Preloaded :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Sealable :
- No
- Shell Material, Finish :
- Steel, Tin Plated
- Depth :
- 17.4mm
- Plating Thickness :
- 800 nm
- Max Voltage Rating (AC) :
- 250V
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Mounting Type :
- Surface Mount, Right Angle
- ELV :
- Compliant
- Current Rating :
- 4.5A
- Contact Type :
- Signal
- Datasheets
- 3-1740195-2
3-1740195-2 Documents
AMPLIMITE HD-20 Series D-Sub Plug, Male Pins Male Signal Solder 1 DE E Surface Mount, Right Angle Copper Gold Steel, Tin Plated
3-1740195-2 Overview
The connector type Plug, Male Pins refers to the connector type.The device's mounting type is Surface Mount, Right Angle.In order to package the product, a Cut Tape (CT) case is used.It belongs to the AMPLIMITE HD-20 Series of products.It features 1 ports for managing a variety of tasks.Its Board Guide feature renders it more powerful in many ways.The part is mounted by Surface Mount.The chip has 9 terminations.The device runs in -55°C~105°C Operating Temperature.
3-1740195-2 Features
9 basic kinds of terminations
AMPLIMITE HD-20 series
3-1740195-2 Applications
There are a lot of TE Connectivity AMP Connectors
3-1740195-2 D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
