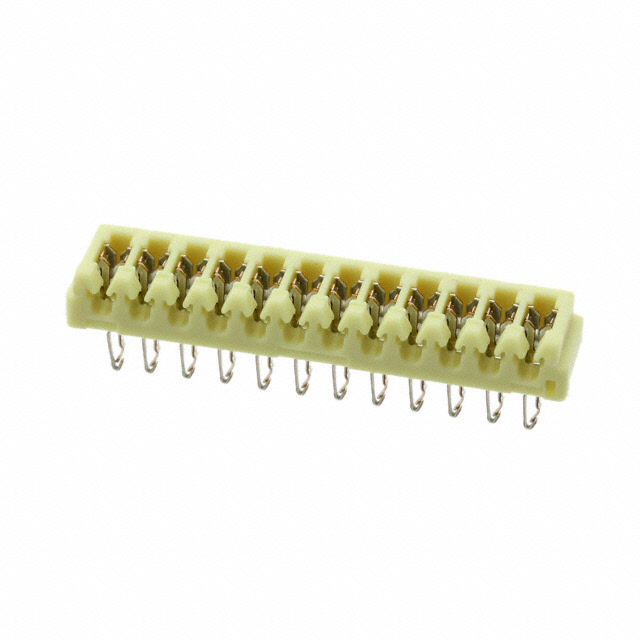

3-173983-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Board In, Direct Wire to Board

Number of Rows :

1

MIL Conformance :

No

Rated Current (Signal) :

2A

Cable Termination :

IDC

Housing Material :

PBT

Wire/Cable Type :

Discrete

UL Flammability Code :

94V-0

Shape :

RECTANGULAR

PCB Mounting Orientation :

RIGHT ANGLE

Wire Gauge :

26-28 AWG

Number of Conductors :

ONE

Reliability :

COMMERCIAL

Contact Resistance :

20mOhm

Cable Pitch :

0.079 2.00mm

Connector Type :

Individual Wires

Insulation Diameter :

830 µm

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tray

Orientation :

RIGHT ANGLE

ECCN Code :

EAR99

Contact Material :

Bronze

Mixed Contacts :

No

Mount :

Through Hole

Factory Lead Time :

11 Weeks

RoHS Status :

RoHS Compliant

Series :

CT Amp-In

Pitch :

2mm

Published :

2005

Contact Finish Thickness - Mating :

1μm

Mating Retention :

Without

Wire Gauge (Max) :

28 AWG

Number of Positions :

12

Min Operating Temperature :

-30°C

Flammability Rating :

UL94 V-0

Current Rating :

2A

IEC Conformance :

No

Mounting Type :

Through Hole, Right Angle

Filter Feature :

No

PCB Thickness :

800μm

Sealable :

No

Color :

Yellow

Length - Tail :

3.5mm

PCB Mount Retention :

With

ELV :

Compliant

Reference Standard :

UL

Wire Gauge (Min) :

26 AWG

Approval Agency :

UL

Contact Current Rating :

2A

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Operating Supply Voltage :

125V

Contact Gender :

Male

Option :

GENERAL PURPOSE

Polarization Key :

POLARIZED HOUSING

Lead Free :

Not Applicable

Number Of PCB Rows :

1

Board-Side Pitch :

0.079 2.00mm

Pbfree Code :

yes

Body/Shell Style :

PLUG

Height :

3.9878mm

Length :

26mm

Total Number of Contacts :

12

Contact Finish :

Tin

Max Operating Temperature :

105°C

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

Termination :

Solder
