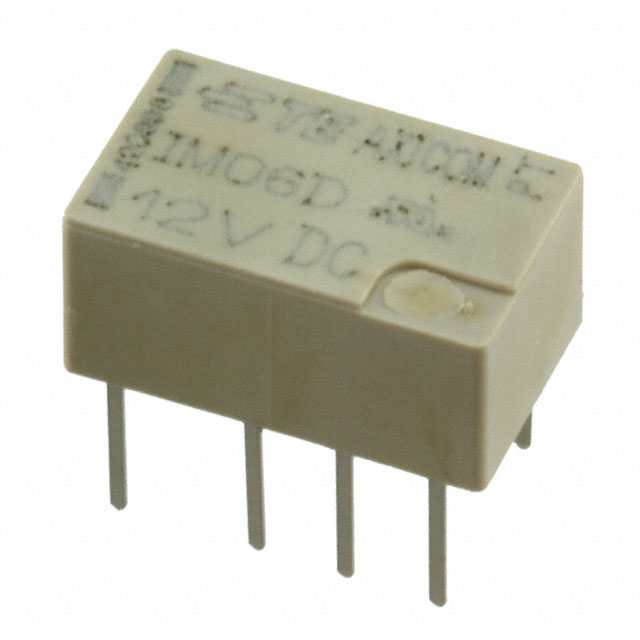

3-1462039-8
Or copy the link below:
- Mfr.Part #
- 3-1462039-8
- Manufacturer
- TE Connectivity Potter & Brumfield Relays
- Package / Case
- DIP
- Datasheet
- Download
- Description
- RELAY TELECOM DPDT 5A 12V
- Stock
- 2,400
- In Stock ：
- 2,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Potter & Brumfield Relays
- Product Category :
- Power Relays, Over 2 Amps
- Voltage - Rated AC :
- 250V
- Published :
- 2013
- Termination :
- PCB
- Length :
- 254mm
- Must Release Voltage :
- 1.2VDC
- Max Voltage Rating (AC) :
- 250V
- Packaging :
- Tube
- Coil Type :
- Non Latching
- Number of Pins :
- 8
- Coil Current :
- 11.7mA
- Termination Style :
- PC Pin
- Mounting Type :
- Through Hole
- Contact Resistance :
- 50mOhm
- Max Voltage Rating (DC) :
- 220V
- Package / Case :
- DIP
- RoHS Status :
- RoHS Compliant
- Width :
- 6mm
- Throw Configuration :
- DPDT
- Insertion Loss (dB) :
- -0.03 dB
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Switching Voltage :
- 250VAC 220VDC -Max
- Release Time :
- 3ms
- Max Operating Temperature :
- 85°C
- Coil Power :
- 140mW
- Radiation Hardening :
- No
- Contact Voltage Rating (DC) :
- 220V
- Contact Form :
- DPDT (2 Form C)
- Operate Time :
- 3ms
- Height :
- 5.65mm
- Must Operate Voltage :
- 9VDC
- Ambient Temperature Range High :
- 85°C
- Number of Contacts :
- 2
- Weight :
- 21.262142g
- ELV :
- Compliant
- Coil Voltage (DC) :
- 12V
- Max Current Rating :
- 5A
- Contact Material :
- Silver Nickel (AgNi), Gold (Au)
- Coil Resistance :
- 1.03kOhms
- Min Operating Temperature :
- -40°C
- Switching Current :
- 5A
- Contact Plating :
- Gold
- Relay Type :
- Telecom
- Coil Voltage :
- 12VDC
- Seal Rating :
- Sealed - Hermetically
- Depth :
- 6mm
- Operating Temperature :
- -40°C~85°C
- Series :
- IM, AXICOM
- Current Rating :
- 5A
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 15 Weeks
- Contact Rating (Current) :
- 5A
- Datasheets
- 3-1462039-8
