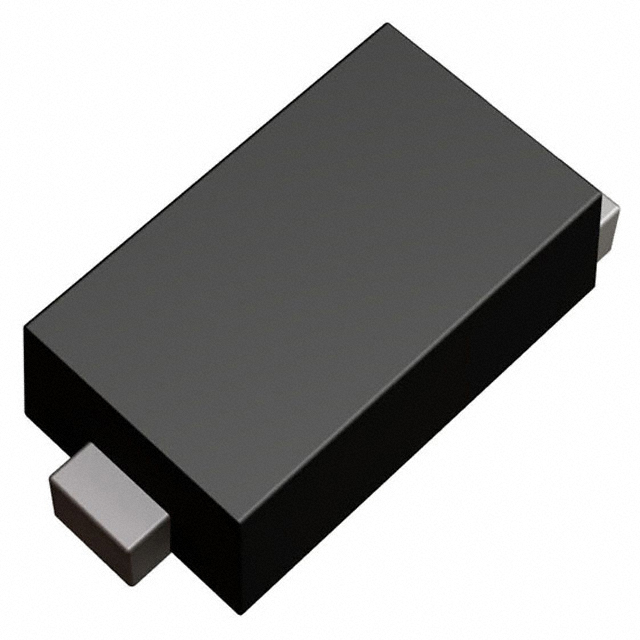

2SC6114T2LR
Or copy the link below:
- Mfr.Part #
- 2SC6114T2LR
- Manufacturer
- ROHM Semiconductor
- Package / Case
- SC-72 Formed Leads
- Datasheet
- Download
- Description
- TRANS NPN 50V 0.1A VMN3
- Stock
- 31,667
- In Stock ：
- 31,667
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ROHM Semiconductor
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Polarity/Channel Type :
- NPN
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- Frequency - Transition :
- 130MHz
- Transistor Type :
- NPN
- Vce Saturation (Max) @ Ib, Ic :
- 300mV @ 2.5mA, 25mA
- Package / Case :
- SC-72 Formed Leads
- Mount :
- Surface Mount
- Max Power Dissipation :
- 150mW
- Max Collector Current :
- 100mA
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Collector Emitter Voltage (VCEO) :
- 300mV
- Mounting Type :
- Surface Mount
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 180 @ 2mA 6V
- Operating Temperature :
- 150°C TJ
- Published :
- 2008
- Power - Max :
- 150mW
- Current - Collector Cutoff (Max) :
- 100nA ICBO
- Configuration :
- Single
- Collector Emitter Breakdown Voltage :
- 50V
- Datasheets
- 2SC6114T2LR
NPN 150°C TJ 100nA ICBO NPN SC-72 Formed Leads Tape & Reel (TR) Surface Mount
2SC6114T2LR Overview
As dc = Ic/Ib, DC current gain is the ratio of base current to collector current, and DC current gain for this device is 180 @ 2mA 6V.When VCE saturation is 300mV @ 2.5mA, 25mA, transistor means Ic has reached transistors maximum value (saturated).A maximum collector current of 100mA volts can be achieved.
2SC6114T2LR Features
the DC current gain for this device is 180 @ 2mA 6V
the vce saturation(Max) is 300mV @ 2.5mA, 25mA
2SC6114T2LR Applications
There are a lot of ROHM Semiconductor
2SC6114T2LR applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
