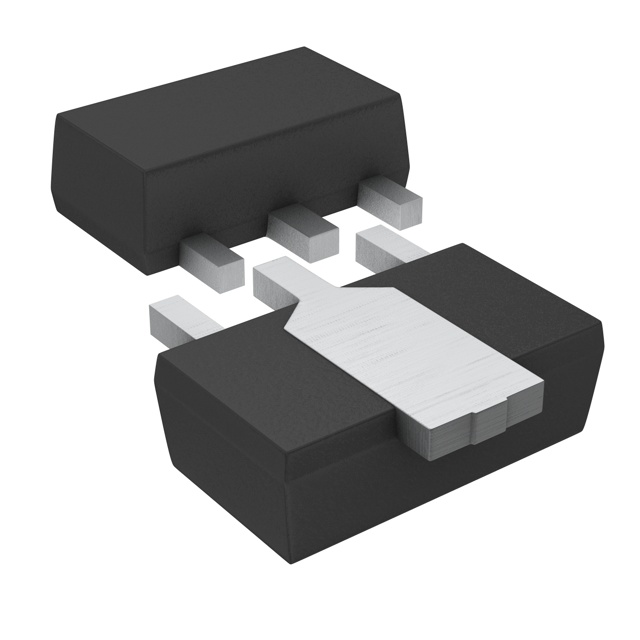

2SC4672T100Q
Or copy the link below:
- Mfr.Part #
- 2SC4672T100Q
- Manufacturer
- ROHM Semiconductor
- Package / Case
- TO-243AA
- Datasheet
- Download
- Description
- TRANS NPN 50V 2A MPT3
- Stock
- 14,521
- In Stock ：
- 14,521
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ROHM Semiconductor
- Product Category :
- Transistors - Bipolar (BJT) - Single
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 120 @ 500mA 2V
- Radiation Hardening :
- No
- Polarity/Channel Type :
- NPN
- hFE Min :
- 82
- Collector Base Voltage (VCBO) :
- 60V
- Collector Emitter Breakdown Voltage :
- 50V
- Transistor Element Material :
- SILICON
- Pbfree Code :
- yes
- Contact Plating :
- Copper, Tin
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Tape and Reel (TR)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Power Dissipation :
- 500mW
- Gain Bandwidth Product :
- 210MHz
- JESD-30 Code :
- R-PSSO-F3
- Element Configuration :
- Single
- Transistor Application :
- AMPLIFIER
- Time@Peak Reflow Temperature-Max (s) :
- 10
- REACH SVHC :
- No SVHC
- Terminal Finish :
- TIN COPPER
- Collector Emitter Voltage (VCEO) :
- 50V
- Transition Frequency :
- 210MHz
- Max Collector Current :
- 3A
- Pin Count :
- 3
- JESD-609 Code :
- e2
- Operating Temperature :
- 150°C TJ
- Mount :
- Surface Mount
- Number of Elements :
- 1
- Current - Collector Cutoff (Max) :
- 100nA ICBO
- Voltage - Rated DC :
- 50V
- Terminal Form :
- Flat
- Emitter Base Voltage (VEBO) :
- 6V
- VCEsat-Max :
- 0.35 V
- Vce Saturation (Max) @ Ib, Ic :
- 350mV @ 50mA, 1A
- Number of Terminations :
- 3
- Base Part Number :
- 2SC4672
- Case Connection :
- COLLECTOR
- Number of Pins :
- 4
- Published :
- 1998
- Current Rating :
- 3A
- Lead Free :
- Lead Free
- Peak Reflow Temperature (Cel) :
- 260
- Max Breakdown Voltage :
- 50V
- Current - Collector (Ic) (Max) :
- 2A
- Transistor Type :
- NPN
- Mounting Type :
- Surface Mount
- Package / Case :
- TO-243AA
- Datasheets
- 2SC4672T100Q
NPN 150°C TJ 100nA ICBO 1 Elements 3 Terminations SILICON NPN TO-243AA Tape & Reel (TR) Surface Mount
2SC4672T100Q Overview
As explained above, DC current gain takes into account the rate at which the base current flows through the collector current; therefore, DC current gain for this device is 120 @ 500mA 2V.In VCE saturation, Ic is at its maximum value (saturated), and the vce saturation (Max) is 350mV @ 50mA, 1A.The emitter base voltage can be kept at 6V for high efficiency.The current rating of this fuse is 3A, which means that transistor can carry an indefintransistore amount of current wtransistorhout deteriorating too much.The part has a transition frequency of 210MHz.The breakdown input voltage is 50V volts.Single BJT transistor is possible to have a collector current as low as 3A volts at Single BJT transistors maximum.
