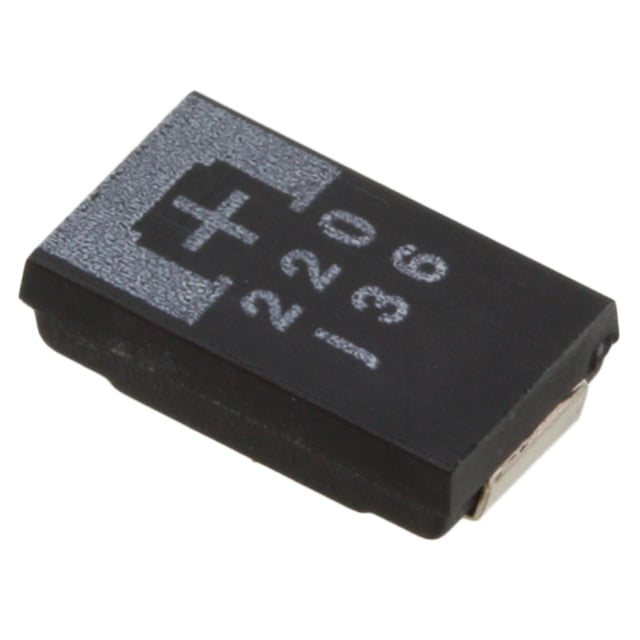

2R5TPE330MF

Manufacturer :

Panasonic

Product Category :

Tantalum - Polymer Capacitors

Factory Lead Time :

14 Weeks

Type :

Molded

JESD-609 Code :

e4

Termination :

SMD/SMT

Dielectric Material :

TANTALUM (SOLID POLYMER)

RoHS Status :

ROHS3 Compliant

ESR (Equivalent Series Resistance) :

15mOhm @ 100kHz

Voltage :

2.5V

Lifetime @ Temp :

2000 Hrs @ 105°C

Published :

2013

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Capacitance :

330µF

Package / Case :

2917 (7343 Metric)

Number of Terminations :

2

Tan Delta :

0.1

Ripple Current :

3.1A

Case Code (Metric) :

7343

Terminal Shape :

J BEND

Packaging :

Cut Tape (CT)

Size / Dimension :

0.287Lx0.169W 7.30mmx4.30mm

Tolerance :

±20%

Packing Method :

TR, Embossed , 13 Inch

Case Code (Imperial) :

2917

Length :

7.3mm

Mount :

Surface Mount

Dissipation Factor :

10 %

Voltage - Rated DC :

2.5V

Depth :

4.3mm

Series :

POSCAP™ TPE

Operating Temperature :

-55°C~105°C

Height :

1.8mm

Mounting Type :

Surface Mount

Leakage Current :

82.5μA

HTS Code :

8532.21.00.50

Radiation Hardening :

No

Height Seated (Max) :

0.079 2.00mm

Polarity :

Polar

Manufacturer Size Code :

D2E

Feature :

GENERAL PURPOSE

Lead Free :

Lead Free

Terminal Finish :

Palladium/Gold (Pd/Au)

REACH SVHC :

No SVHC
