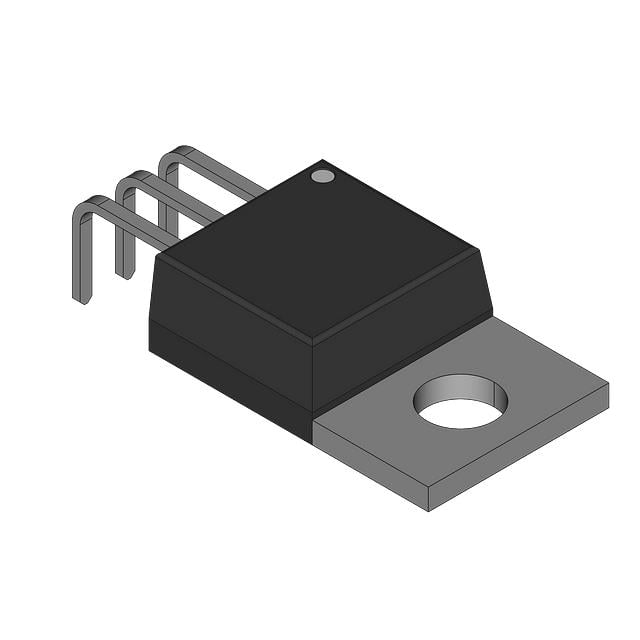

2N6402G

Manufacturer :

onsemi

Product Category :

Thyristors - SCRs

Voltage - Off State :

200V

Current - On State (It (AV)) (Max) :

10A

Factory Lead Time :

16 Weeks

JESD-30 Code :

R-PSFM-T3

Qualification Status :

Not Qualified

Base Part Number :

2N6402

HTS Code :

8541.30.00.80

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Package / Case :

TO-220-3

Repetitive Peak Off-state Voltage :

200V

Terminal Position :

Single

Current - On State (It (RMS)) (Max) :

16A

Current - Hold (Ih) (Max) :

40mA

Repetitive Peak Reverse Voltage :

200V

Mounting Type :

Through Hole

Packaging :

Bulk

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Surface Mount :

No

Case Connection :

ANODE

Number of Elements :

1

Trigger Device Type :

SCR

RoHS Status :

ROHS3 Compliant

Voltage - On State (Vtm) (Max) :

1.7V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - Gate Trigger (Vgt) (Max) :

1.5V

JEDEC-95 Code :

TO-220AB

SCR Type :

Standard Recovery

Current - Off State (Max) :

10μA

Operating Temperature :

-40°C~125°C

Reach Compliance Code :

not_compliant

Configuration :

Single

Current - Gate Trigger (Igt) (Max) :

30mA

Current - Non Rep. Surge 50, 60Hz (Itsm) :

160A @ 60Hz

Number of Terminations :

3

Published :

2012
