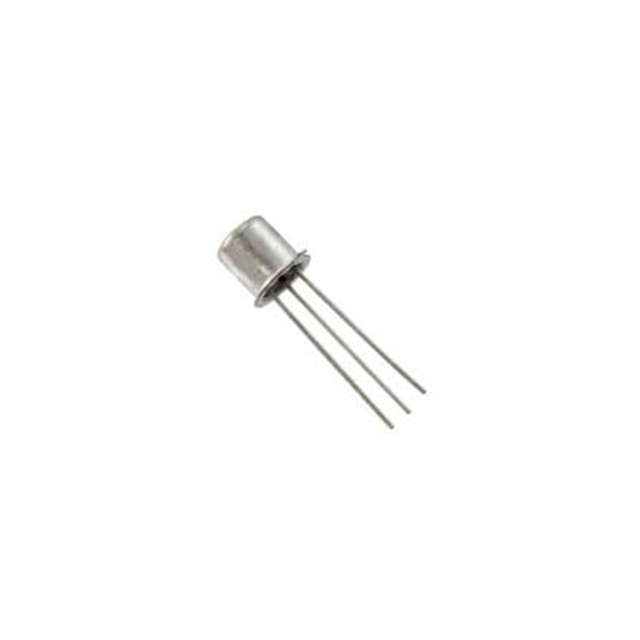

2N3027

Manufacturer :

Solid State Inc.

Product Category :

Thyristors - SCRs

DC Gate Trigger Current-Max :

1.2 mA

Repetitive Peak Off-state Voltage :

30 V

Number of Terminals :

3

Trigger Device Type :

SCR

JEDEC-95 Code :

TO-5

Terminal Form :

Wire

Repetitive Peak Reverse Voltage :

30 V

Holding Current-Max :

10 mA

Terminal Position :

BOTTOM

HTS Code :

8541.30.00.80

Configuration :

Single

Non-Repetitive Pk On-state Cur :

5 A

Surface Mount :

No

RMS On-state Current-Max :

1.3 A

Circuit Commutated Turn-off Time-Nom :

2 μs

Reach Compliance Code :

Compliant

Package Shape :

Round

Number of Elements :

1

JESD-30 Code :

O-MBCY-W3

ECCN Code :

EAR99

DC Gate Trigger Voltage-Max :

1.1 V
