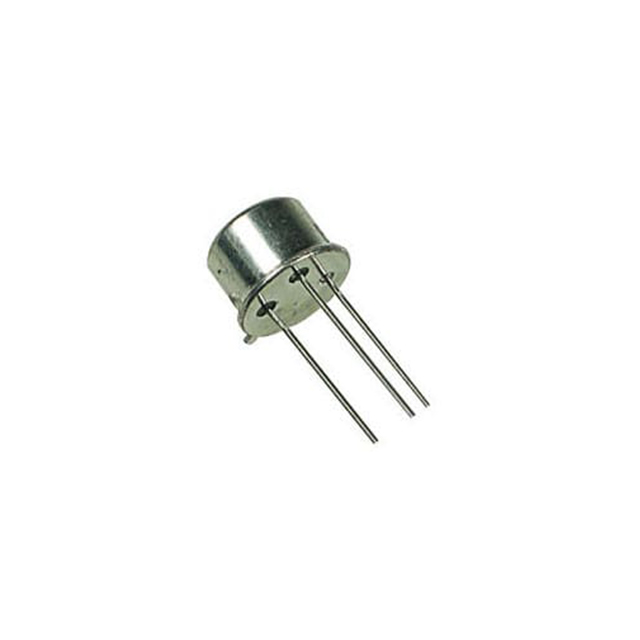

2N2329

Manufacturer :

Solid State Inc.

Product Category :

Thyristors - SCRs

Packaging :

Bulk

Supplier Device Package :

TO-5

Voltage - Off State :

400V

SCR Type :

Sensitive Gate

Radiation Hardening :

No

Mounting Type :

Through Hole

Number of Pins :

3

Current - Hold (Ih) (Max) :

2mA

RoHS Status :

Non-RoHS Compliant

Mount :

Through Hole

Min Operating Temperature :

-65°C

Max Repetitive Reverse Voltage (Vrrm) :

400V

Operating Temperature :

-65°C~125°C

Max Operating Temperature :

125°C

Current - On State (It (AV)) (Max) :

220mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Package / Case :

TO-205AA, TO-5-3 Metal Can

Hold Current :

2mA

Current - Gate Trigger (Igt) (Max) :

200μA

Published :

2002

Voltage - Gate Trigger (Vgt) (Max) :

800mV
